Daewoo TV ( Chassis CP-002 )

Post by ultrasonicâ„¢ on Fri Feb 19, 2016 6:03 pm

DAEWOO TV

21V1M
21V4M
DTC-14
DTC-14V1
DTC-14V1M
DTC-14V3
DTC-14V4
DTC-14V5
DTC-14U1
DTC-20
DTC-20V1
DTC-20V3
DTC-20V4
DTC-20V5
DTC-20U1
DTC-21
DTC-21V1
DTC-21V3
DTC-21V4
DTC-21U1
DTC-21U3
KR20U1T


Chassis CP-002







Partlist:

Reg: 2SK2677
PWM: DPM001
EEPROM: 24LC16B
System Con: DW195B-CR1, ST92195
Jungle: STV2238D, STV2238D
Vert: TDA1771
Sound: TDA7267A
RGB Amp: TDA6103Q
HOT: 2SC5386, D2499
FBT: FSA37012M (HR8480)
Tuner: DT5-BF18D

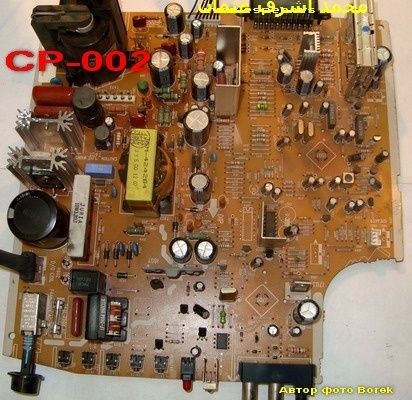

DAEWOO Chassis CP-002
