Daewoo TV ( Chassis CP-185L & CP-185G ) Eboard 4859807793-00
by ultrasonic™ on Fri Feb 19, 2016 5:29 pm
DAEWOO TV
14S2M
14T2M
20T1ZS
20T2M
21D3T
DTB-14D4T
KR-14D7T
KR-2131FL
KR-2132FL
KR21D7Z
Chassis CP185L
Chassis CP185G
Eboard: 4859807793-00
Partlist:
Reg: STRW6753
EEPROM: 24C08
UOC: TDA9361, TDA9381,TDA9361PS/N3/3/1715 DW9361/N3/3-EB8
Sound: TDA72674A
RGB: TDA6107Q,
Vert: LA78041, LA78040
HOT: ST1803DHI, D2627Y
FBT: FFA69023M,BSC25-5535
Tuner: DT5-BF18D, TECC2949PG35W
To switch the TV set into service mode please see instruction below.
1 - Select pr. number 91
2 - Adjust sharpness to minimum and exit all menu.
3 - Quickly press the key sequence : RED - GREEN - menu
To exit SERVICE menu press menu key or Std By key.
In Service Mode press "OK" to the microcontroller i.e. the I2C bus is free and the set can be controlled by external
equipment.
Press "OK" again to allow the microcontroller to control the set again

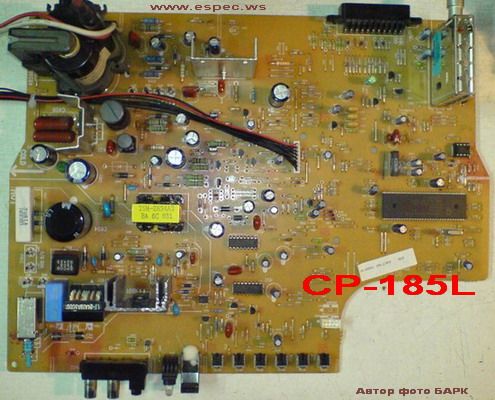

DAEWOO TV Chassis CP-185L & CP-185G
14S2M
14T2M
20T1ZS
20T2M
21D3T
DTB-14D4T
KR-14D7T
KR-2131FL
KR-2132FL
KR21D7Z
Chassis CP185L
Chassis CP185G
Eboard: 4859807793-00
Partlist:
Reg: STRW6753
EEPROM: 24C08
UOC: TDA9361, TDA9381,TDA9361PS/N3/3/1715 DW9361/N3/3-EB8
Sound: TDA72674A
RGB: TDA6107Q,
Vert: LA78041, LA78040
HOT: ST1803DHI, D2627Y
FBT: FFA69023M,BSC25-5535
Tuner: DT5-BF18D, TECC2949PG35W
To switch the TV set into service mode please see instruction below.
1 - Select pr. number 91
2 - Adjust sharpness to minimum and exit all menu.
3 - Quickly press the key sequence : RED - GREEN - menu
To exit SERVICE menu press menu key or Std By key.
In Service Mode press "OK" to the microcontroller i.e. the I2C bus is free and the set can be controlled by external
equipment.
Press "OK" again to allow the microcontroller to control the set again
DAEWOO TV Chassis CP-185L & CP-185G
