Goldstar TV ( Chassis NC-12J ) Eboard 484-827B

Post by ultrasonicâ„¢ on Fri Feb 19, 2016 4:20 pm

Goldstar TV

CN-14A41
CN-14A43
CN-20A41
CN-20A43



chassis NC-12J
Eboard: 484-827B









Partlist:

Reg: STR50092K
Syestem Con: GS8038-06A
Jungle: LA7670
RGB Amp: KTC3229
Sound: KTD880A & KTB988. preamp KTC3198
Vert: LA7837
H-out: 2SD1651
FBT: 154-375C (21")
Tuner: CHA7A707B

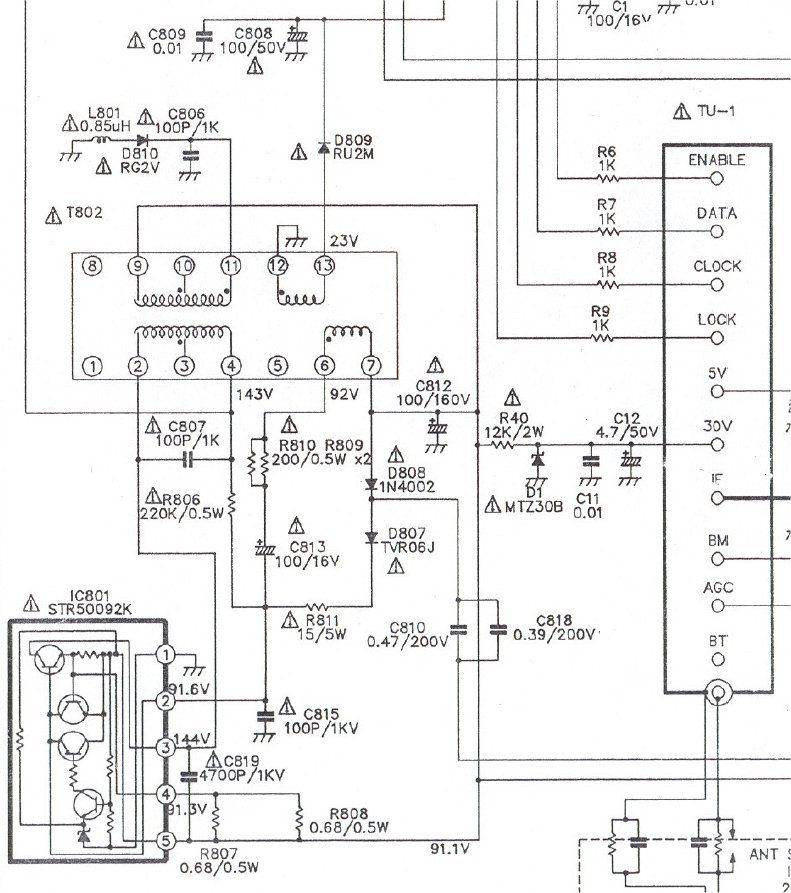

Goldstar TV Chassis NC-12J
passcode: L my access code
