Sharp TV ( Chassis 8P-SR ) Eboard: DUNTK5900WEX5, DUNTK5900WEX0

Post by Hertz on Sat Feb 13, 2016 1:19 pm

Sharp TV

CV-2131M
C-1431H
C-1431IR
C-2031FP
C-3710H
CV-2031G
CV-2031M
CV-2031S
CV-2131CK1
CV-2131H
CV-2131SC
CV-2131SC(BK)
CV-2133H
CV-2133IR
CV-3709S
CV-3710G


Chassis 8P-SR
Eboard - DUNTK5900WEX5 , PWBF5900PE

DUNTK5900WEX0




Partlist:

Reg - STR-D5441 (IX1148CE)
System Con - IX1147CEN1
Secam - IX0226CE
Video - IX0713CEN1
SAW - FILC0073CE, CD073CE
VIF - IX0711CEN1
Vertical - X0640C (IX0640CE)
Sound - X0250C (IX0250CE)
SIF - X0776CE
TV/AV - LA7016
RGB Amp. - 2SC2229
HOT - 2SD1554, 2SD1554
FBT - F0029PE (TRNF0029PE) (HR80453)
Tuner - VTSA101, A51JFC61X(H)
Tube - A51JFC61X(H)
Other ICs - IX0614CE, IZ0004CE

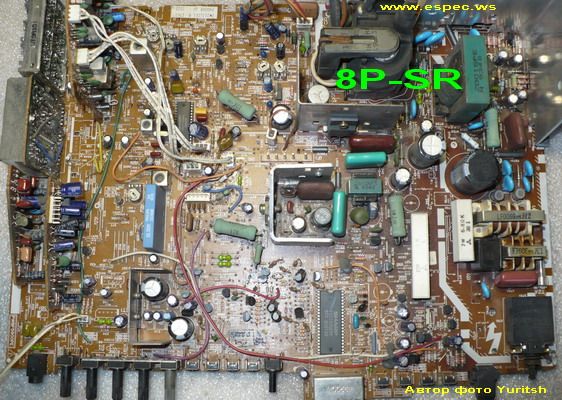

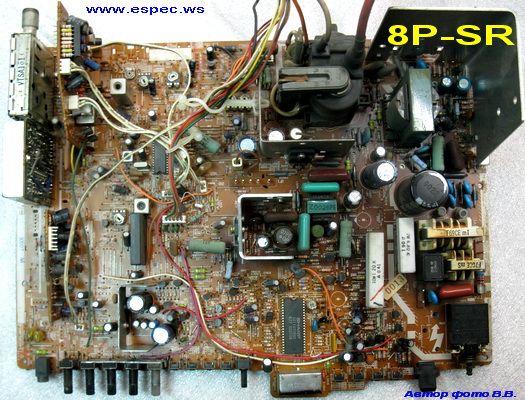

Sharp TV Chassis 8P-SR Eboard DUNTK5900WEX5


Last edited by Hertz on Mon Jun 06, 2016 3:02 pm; edited 1 time in total

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Sharp TV ( Chassis 8P-SR ) Eboard: DUNTK5900WEX5, DUNTK5900WEX0

Post by DJFEL on Sun Feb 14, 2016 3:39 pm

eto pala...mang ka hawed to...
