China Board ( CY-PH2529PD )

Post by ultrasonicâ„¢ on Fri Feb 05, 2016 6:24 pm

China TV


CY-PH2529PD
CY-PH2529PD-002







Parts:

Reg: 2SD5299
pwm: A1015, 2SC3807
EEPROM: 24C08
UOC: TDA9341/51/61/81, OM8370/71/77
AV sw: TC4053
RGB: BF422, BF423
Sound: AN7522
Vert: LA78041
Hot: 2SC5296
FBT: BSC29-0122Z
Tuner:

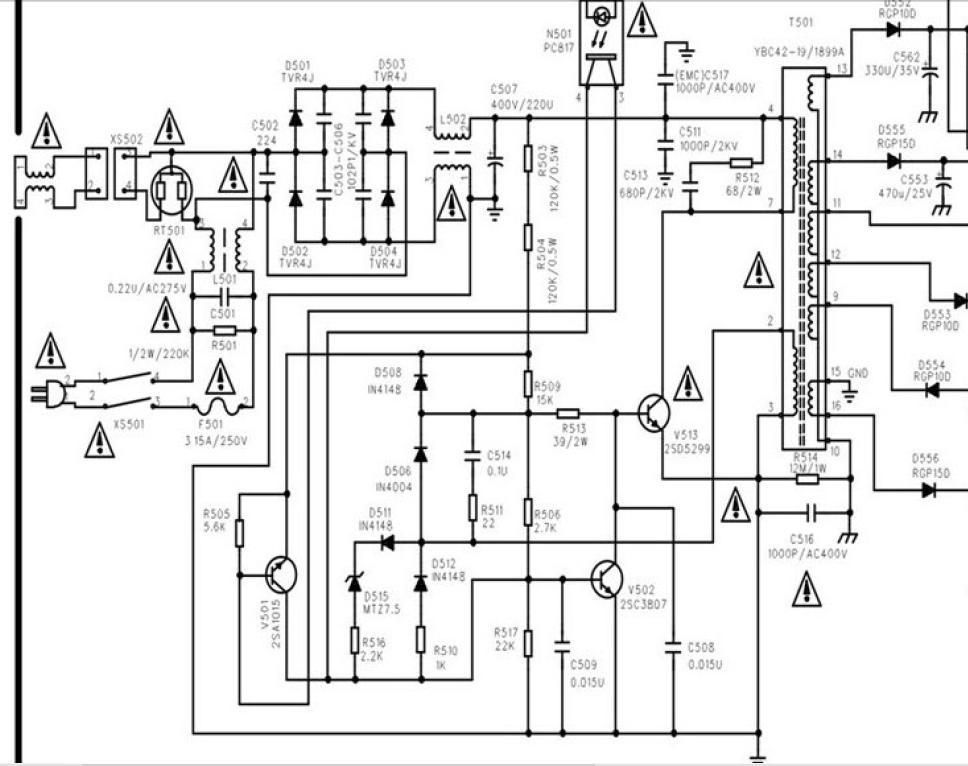

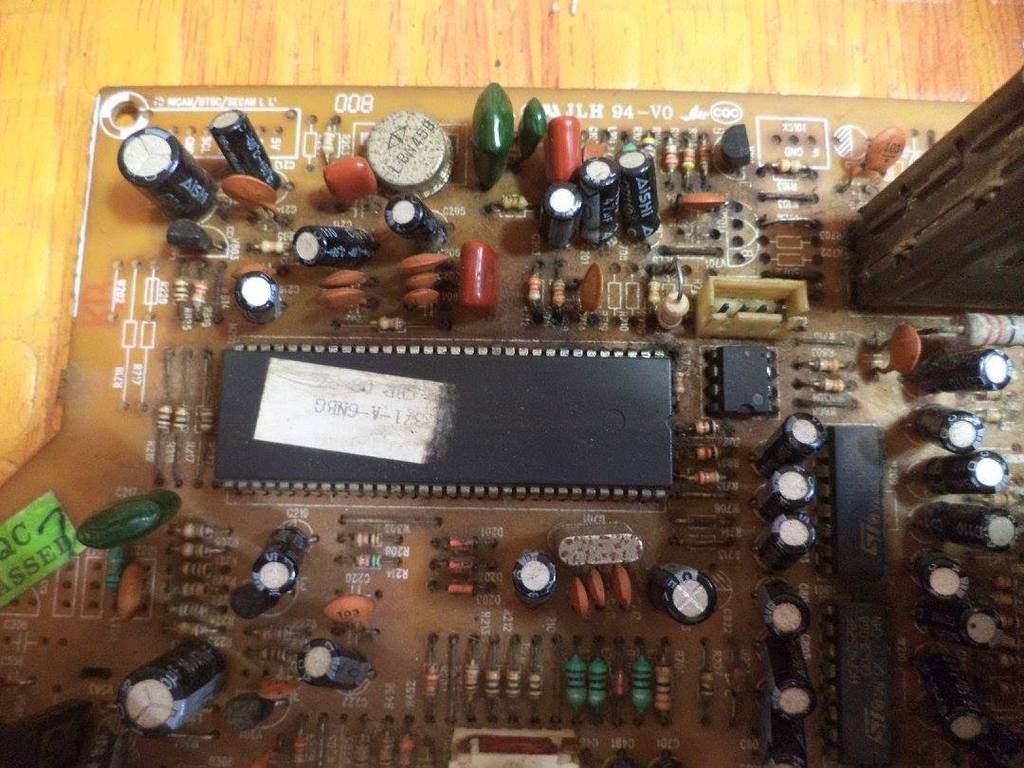

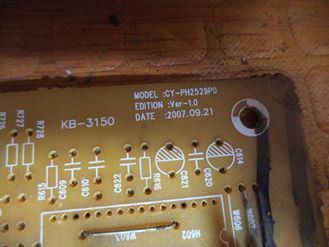

images courtsey of Sis DJFEL

China Board TV CY-PH2529PD

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonicâ„¢
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: China Board ( CY-PH2529PD )

Post by DJFEL on Fri Feb 12, 2016 3:31 pm

yan..
