Samsung TV ( Chassis KSDA )

Post by ultrasonic™ on Sat Jan 16, 2016 4:43 pm

Samsung TV

CS29Z45z39xnwt
Uranus Crt TV

Chassis KSDA






Partlist:

Reg: STR-W6750F
EEPROM : AT24C16AN
UOC : TDA12120H/N300
SAW : AF389A19M & MIF389A1M
Vert :LA78045
Sound : TDA7297SA
RGB : TDA6107AJF/N1
HOT : TT2206
FBT : FQH29A003 AA26-00289A / AA26-00290A = JF0501-91911
Tuner : TDQ-6L/125S AA40-10007A
Other ICs : 74HC4052D, KA393, BA7657F, PLM1000, 3006KW

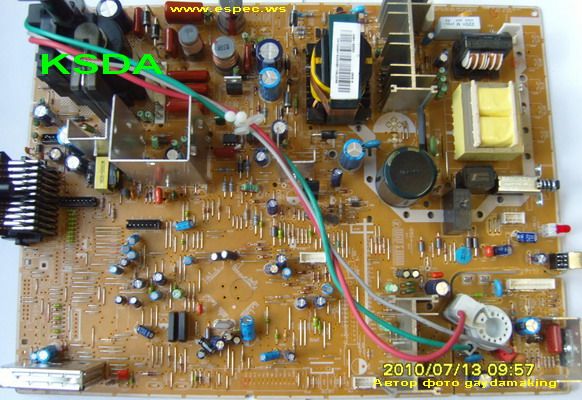

Samsung TV Chassis KSDA
