samsung led tv UA32F5500AR

Post by sherlanmamaril on Sun Oct 11, 2015 6:59 pm

masters patulong po sa  led tv kopo unang problem nasabog si 47pf per 1kv sabog fuse check ko fet ayun sira replace nd na naiiliaw si bulb salpak fuse  walang voltage sa secondary side, ni isa po ok naman mga secondary diodes may 300v dc sa main caps maging sa drain ni fet, hang ko na mainboard at inverter board wala pa din kaya sa psu lang po ito , na check kona po lahat ng primary ok naman , maliban po sa pwm regulator anu po payo niyo dito masters?

maari ba mabarahan yung secodnary voltages ng mga load ko gaya sa crt  na pag sira fbt eh walang b plus?
nd po kaya nd lang naswitch si ps on kaya walang secondary? ang sensitive ng fet kopo pag pinump nasisira

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by alvinquimbo on Sun Oct 11, 2015 7:04 pm

kung walang secondary sis baka di gumagana ang reg mo sis or walang triggering na nangyari..Try mo kaya palitan si pwm, kasi ang alam ko pag sira yung fet mo ay automatic palitan mo si pwm bale package mo silang palitan..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Sun Oct 11, 2015 7:07 pm

alvinquimbo wrote:kung walang secondary sis baka di gumagana ang reg mo sis or walang triggering na nangyari..Try mo kaya palitan si pwm, kasi ang alam ko pag sira yung fet mo ay automatic palitan mo si pwm bale package  mo silang palitan..

master salamat po sa reply  sa tingin ko nga din po eh sya na lang sira
smd kasi sya
pede kopo ma tanung if tama reading ko sa fet? nung bagu ko isalpak, diba may step na ididischarge na ang fet hahawakan ng kamay yung fet kopo nag automatic mag discharge ok lang iyon diba po? saka master maari bang nabarahan lang si secondary voltages ko ng load? salamat

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Electro on Tue Oct 13, 2015 1:36 pm

paghiwalayin mo master ang psu at main board. tapos short mo ang ps-on sa ground. pag wala pa rin voltage out master. baka sira nga ang pwm ic niya master

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by alvinquimbo on Tue Oct 13, 2015 4:43 pm

agree agree agree

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Tue Oct 13, 2015 4:56 pm

may nasabi sakin dapat kahit walang ps on may 5 volts ako kaya problem talaga po sa pwm na tingin kopo, salamat sa tip sa pag on ng psu po
yung pin 8 na vcc po master wala pang 1 volt hang ko kaya capacitor para maisolate lang si pwm para makita if tataas?

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Electro on Tue Oct 13, 2015 5:46 pm

dapat meron ka ng 5v master o mababa kunti. yan din ang turo din sakin. standby supply daw yan para pang on

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Tue Oct 13, 2015 6:17 pm

Electro wrote:dapat meron ka ng 5v master o mababa kunti. yan din ang turo din sakin. standby supply daw yan para pang on
 mababa po ang vcc ko baka nahihila ng pwm ic kaya mababa , wala namang mangyayari pong masama pag open ang isa sa power supply diba po? naisip ko hang vcc eh smd kaya mahirap po yung kasunod na pyesa nalang kaya si capacitor po yun

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Hertz on Wed Oct 14, 2015 9:30 am

check mo ang mga high value resistor malapit sa pwm nandyan lang ang sira dyan. O mismong pwm na mismo ang sira. palitan mo na lang

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Wed Oct 14, 2015 1:57 pm

opo palitna kopo nakutuhan kona po siya ok naman masters bakit led walang inverter board??? yung nasira ko kanina hinahanap ko kasi inverter board natangal pa yung tcp ko

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by alvinquimbo on Wed Oct 14, 2015 4:53 pm

para sa akin kaya walang inverter board ang mga led kasi sa aking opinyon ay maliit na boltahe ang kelangan para magana yung screen or ang led nya..D tulad sa mga LCD na needed ng step up trafo or inverter para mapagana..pansin mo siguro sa mga LCD na may trafo..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Wed Oct 14, 2015 5:17 pm

kanina lang kpo narealize, natangal ko yung tcp po madidikit pa kaya yun? saka master , panu nagana ang led driver? nasabi sa akin ganun din alng kaya gaya sa inverter circuit wala lang inverter transformer?

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Fri Oct 16, 2015 4:17 pm

masters panu kaya ito ? pwm sira wala atang nabibiling ganito , anu po advice niyo buong board na ito?

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Hertz on Sat Oct 17, 2015 9:32 am

iyong led driver. step up dc/dc boost converter ang principle niyan. gaya nito.




_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Hertz on Sat Oct 17, 2015 9:34 am

kong sira ang pwm ay convert mo na lang ang primary side at palitan mo ang regulator system niya

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Sun Oct 18, 2015 2:33 pm

paano po yun master hertz?

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Electro on Tue Oct 20, 2015 10:21 am

iyan yata iyong mga tinuturo nina master na papalitan ng strw ang orihinal na regulator

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Thu Oct 22, 2015 2:56 pm

mas gusto ko po yung str regulator ic gamit masters, paano po kaya ito?
about sa led driver nakita kona po sila,, anu po yung bulit in sa psu yung led driver masters?anu itsura po

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Electro on Fri Oct 23, 2015 12:54 pm

sorry master hindi ko masiyadong alam. nakakalito kasi sundan iyong tappings ni master. basta naka board na iyon master tapos tatanggalin iyong dating regulator. mag ja jumper na lang ng mga wires. para gumana iyong chopper niya.

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Fri Oct 23, 2015 4:36 pm

mahirap po ata yuon kung unang gagawin risky po hindi kasi sakin yung tv salamat po sa reply, nga po pala hindi ako master newbie din po

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Electro on Wed Oct 28, 2015 9:54 am

lahat po ng member po dito master. tinuturi ko pong mga master. dito kasi ako natoto master Very Happy

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Wed Oct 28, 2015 3:22 pm

ako sa kabila hehe grabe nga nung una ako nd ko alam talaga resolder lang sandata ko

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by triac on Thu Oct 29, 2015 5:24 pm

basa mode nalang muna para matutu na rin.

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by sherlanmamaril on Tue Nov 10, 2015 7:51 pm

built in led driver pala to sa kaka aral kopo natutunan bilhana konalang ng board?

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: samsung led tv UA32F5500AR

Post by Hertz on Fri Nov 20, 2015 5:34 pm

sherlanmamaril wrote:paano po yun master hertz?

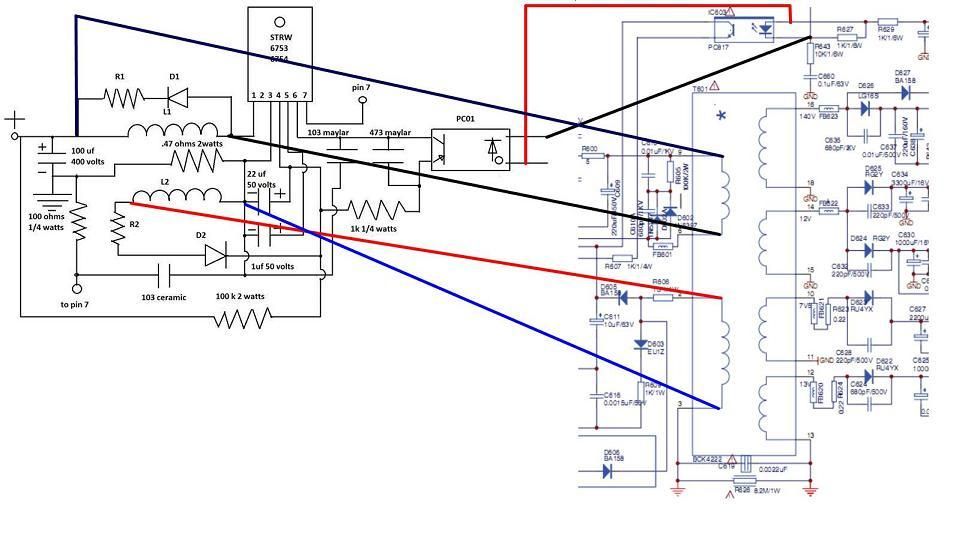

ito ang sample galing sa mga kapatid natin sa elab at fb. gamit ang 6753 o 54

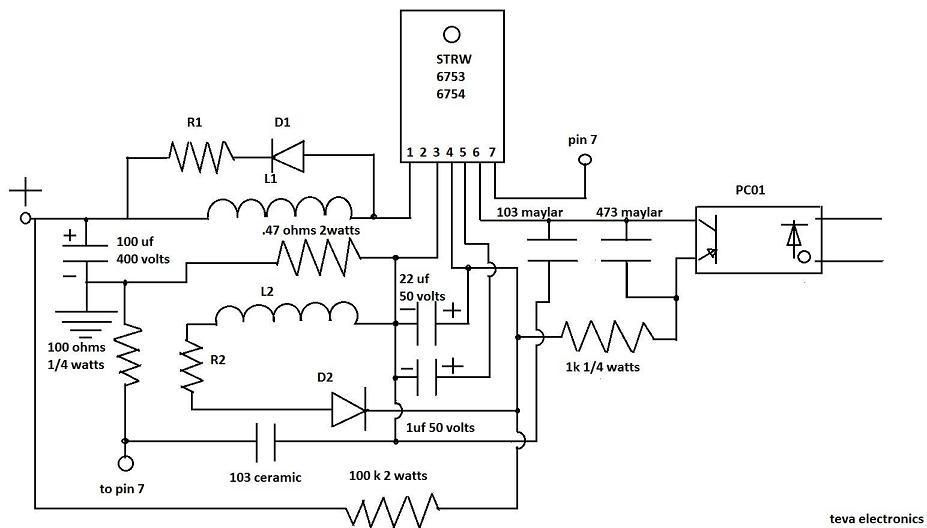

ito naman paano ang tapping


_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down
