Panasonic TV ( Chassis MX-3C ) E.board TNP197090AN

Post by ultrasonic™ on Fri Aug 14, 2015 3:53 pm

Panasonic TV

Model Series:

TC-2150RM
TC-2150RS
TC-2150R
TC-2150RC
TC-2150RM

TX-2150T
TX-2150TS


Chassis MX-3C
Eboard: TNP197090AN,TNP197090AA




Reg: 2SC5249, 2SC4804
PWM: 2SA1512 & 2SC3940A
EEPROM: 24C02A I/P
System con: MN152811TZX
Jungle: AN5192K-A
Secam: TDA8395P
Delay: TDA4665
SIF: M52317SP
Band SW: AN5071
AV Sw: M52317SP with MC14066BCP, HEF4066BC, TVSUPD40668CP
RGB: 2SC3063
Sound: AN5270
Vert:  LA7837
HOT: 2SD1555
FBT: TLF15644F (HR8783)
Tuner: ENV598D1F2

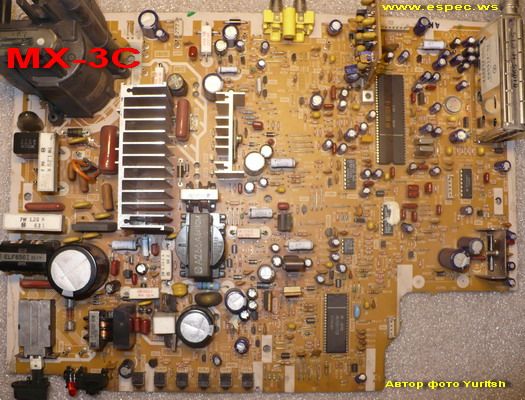

Panasonic TV ( Chassis MX-3C ) Eboard TNP197090AN
passcode: my new sttm id
