Goldstar or LG TV ( Chassis NC-31A/K ) Eboard: 111-J35A-2-3

Post by ultrasonic™ on Sat Nov 13, 2010 6:36 pm

Model Series:

CN-20A10
CN-14A88
CN-20A88



Chassis NC-31A/K
Eboard: 111-J35A-2-3 = NC-31A

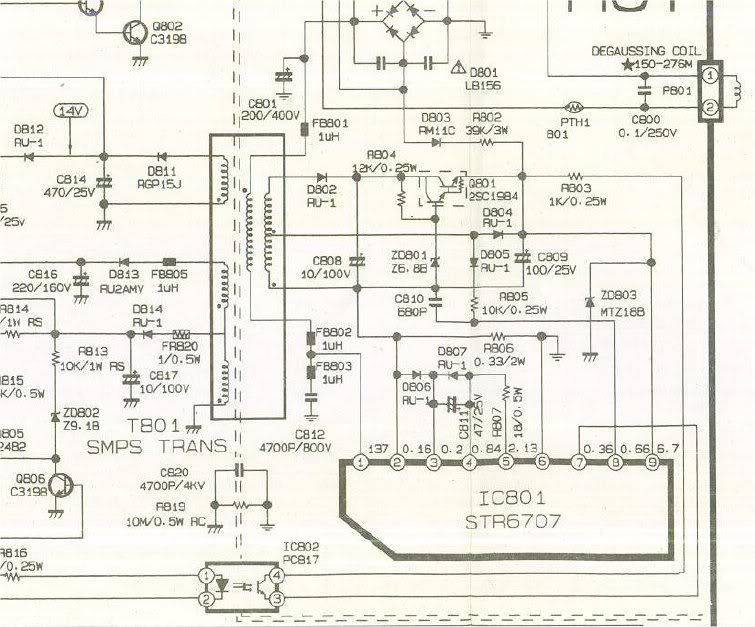

Power Reg.: STRS6707
EEPROM : AT24C02
System Con. : M37211M2 (GS8208-11C)
Jungle : LA7674
Vertical : LA7837
Sound : TDA7056
HOT:  2SD1877
FBT : 154-277F
Tuner : CHR7F707T



Note:

standby mode:         50V
oscillation mode:  125V


Chassis  NC-31A
NC-31A/K

Passcode:  Codename
