Sharp TV ( Chassis GB-1 ) E.Board: DUNTKB024WE

Post by Hertz on Wed Aug 12, 2015 11:07 am

Sharp TV

29XF30
29XF50


Chassis GB-1
E.Board: DUNTKB024WE





Partlist:


Reg - ST9NC80ZI
PWM - TEA1507
EEPROM - M24C08B
system Con - IX3593CE, IX3604CE
Jungle - IX3394CE
Multi LV - STV8164
PIN Amp - KIA358P
RGB - TDA6103Q
Sound - AN5277
Vert - TA8427K
Hot - 2SD2581
FBT - FA001WJ
Tuner - VTST5HD970

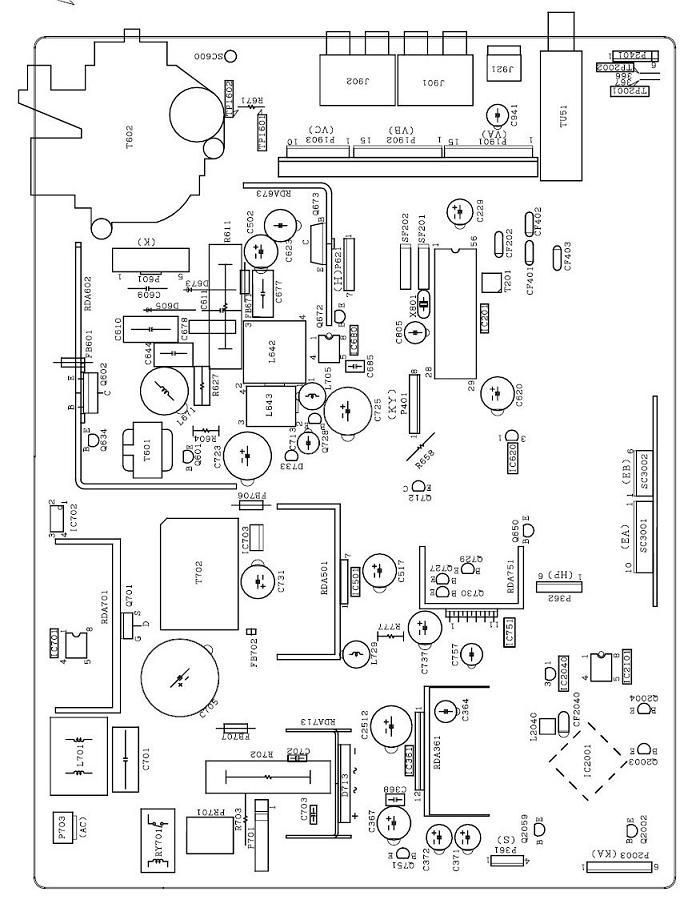

Sharp TV (Chassis GB-1) E.Board: DUNTKB024WE
