Panasonic TC-14P2SE

Page 2 of 2 Previous  1, 2

View previous topic View next topic Go down

Re: Panasonic TC-14P2SE

Post by Electro on Mon Jul 06, 2015 10:10 am

gagana ng tama ang system ic master. minsan daw kasi pumapalya ang 5v dahil sa remote at ibang load. minsan pinapatanggal din ni master iyong transistor.

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by daltanics on Mon Jul 06, 2015 10:42 am

try mo palitan yung dalawang photo coupler,& paki check yung dalawang transistor q850,q851....

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Tue Jul 07, 2015 9:24 pm

ayan nandito na si master daltanics. sundan mo lang master alvinquimbo

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Thu Jul 09, 2015 8:41 pm

@sis electro,natry ko idirect yung 5v,,umakyat yung B+ nasa 55 volts na sya..Tanong lang sis nagdirect ako sa pin ng tact switch doon sa nakaconnect lahat..tama ba yung ginawa ko? umakyat yung b+ pero nawala yung ilaw ng led nya...@sir daltanics, cge sir try ko palitan para makasiguro..salamat sa advice mga sis..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by ultrasonic™ on Sat Jul 11, 2015 1:43 pm

isolate mo muna vin ang horizontal sect para di ka maligaw...
ung mga nabanggit nina Sir Hertz, Sir Daltanics at Sir jeff ay double check mo... sali mo rin ang mga current limiter ng opto sides.. R812, R815, R822 at R851. kng maaari ay direct sub muna... based sa last updates mo.. nawala ang led lit.. try to feed a external 5V.. para makausad agad

pa ot: vin na replyan ba kita abwt dun sa h-out replacement?
kng hndi.. pwde mong pamalit khit anong Hot bastat my built in damper.. like D1555, D1878, D2499 & etc.. gagana yan.. observhan mo lng ang init/temperature nya during operation... pag medjo mainit like nakakapasok hawakan ang front body
nya ay palitan mo ng mas mataas.. pwde din tignan mo nlng ang specs nya through datasheets...

on topic: so familiar nga ang board.. di ko lng tlga maalaala.

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Mon Jul 13, 2015 11:01 pm

sir ultra salamat sa reply..cge sir update lang ko ito pag ok na...pahinga ka at ingat sa sarili... Very Happy Very Happy

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Tue Jul 14, 2015 5:37 pm

ayan andito na pala si master Smile

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by ultrasonic™ on Wed Jul 15, 2015 5:39 pm

alvinquimbo wrote:sir ultra salamat sa reply..cge sir update lang ko ito pag ok na...pahinga ka at ingat sa sarili... Very Happy Very Happy

i will try... di ko hawak buhay ko  T_T

pero medjo kontrol nako ngyon... mahirap na  ^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by daltanics on Thu Jul 16, 2015 9:39 pm

kadalasan ang masira sa model na yan yung 2 transistor na malapit sa tack switch na or dalawang caps na nsa reg section& 2 photo coupler mag low voltage yan pag sira ang mga nasabi ko.

sir ultra kumusta ?naunsa diay nahitabo nimo.kung naka time suroy dri sa shop nako dri lang dapit sa uyangguren sa pioneer street. relax lang kasi itong trabaho natin stress ang kalaban natin.thanks

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Fri Jul 17, 2015 7:41 pm

salamat na marami sir daltanics..subukan ko po ang advice nyo...update lang ako nito pag natapos na..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by ultrasonic™ on Mon Jul 20, 2015 4:23 pm

@sir daltanics... tama jud... sori i let my guard down.. na over patig tuloy at sumabay pa ang panuhot..

duol diay ka sa ic electronics Sir dal... jajaja suruyon teka pag naa koy paliton dha

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Mon Jul 20, 2015 7:26 pm

Mga sis, patulong ulit...Natry ko na lahat ang mga advise nyo pero wala pa rin..Tapos sir ultra saan yung idirect yung 5v? san ko ididirect?doon ba sa nakashort lahat ng paa ng tact switch or before yan?Tapos may hizzing sound sya...Tinanggal ko na rin yung H-out para ma-isolate ko ang probs..Nasa 36vdc parin ang B+ nya..
Tapos mga sis any tips kung paano ko matetest ang mga caps na ceramic at mylar gamit ang tester?Kasi wala talaga akong ESR dito,,yung style na malalaman mo agad na leak sya...Kasi minsan nalilito kung leak ba itong mylar or ceramic..try ko nalang direct sub ng makasiguro..Duda ko kasi nasa Regulator section parin ang probs nito.. apologies apologies doubt going to cry

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Oscar on Tue Jul 21, 2015 9:22 am

yun pin na patungong system master

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Wed Jul 22, 2015 10:01 pm

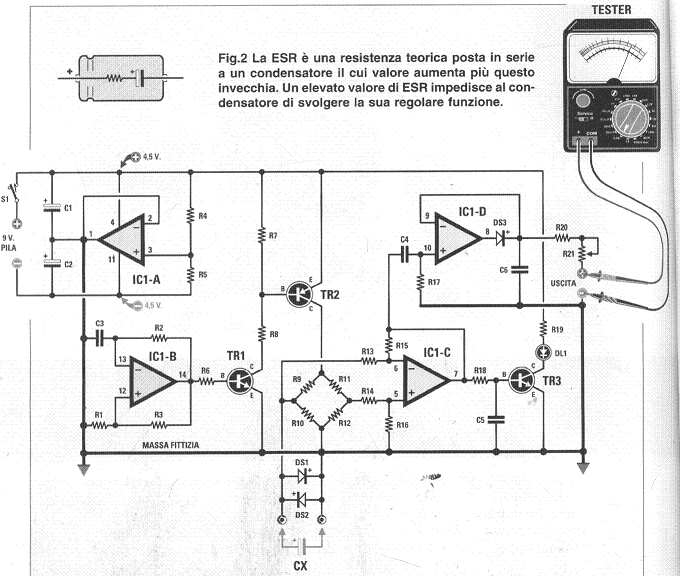

mahihirapan ka sa ordinaryong analog ohmmeter dyan.

gawa ka nalang ng sayo






DOWNLOAD PCB Layout in PDF format HERE!
courtesy of Sir ajak

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Thu Jul 23, 2015 5:31 pm

Salamat nito sir hertz...gusto ko talaga magkaroon ng sariling ESR...Paano ba to ioperate sir hertz?

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Thu Jul 23, 2015 5:33 pm

Sir hertz anu ang trabaho ng Voltmeter and Ammeter?

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Fri Jul 24, 2015 3:56 pm

Sila ang magsisilbi mong meter. Pili ka nalang kong anong meron ka.puede iyan sa analog o digital





When Testing Capacitor, polarity of the probes does not matter


To tune in, Switch on, Short probe leads together and adjust potentiometer for 100% on meter.
it measures the ESR (Equivalent Series Resistance) of capacitor, electrolytic or not.

There are the following possibilities:

1) The electrolytic capacitor is good: (low ESR) the bridge will stay balanced and the meter will indicate the maximum current.

2) The electrolytic capacitor is not good:
(high ESR) the bridge will be unbalanced and that will cause the meter to indicate less current; as less the meter will indicate as higher will be the ESR;
After few measure you'll be able to decide if a capacitor is good or not.

3) There is a short circuit in the electrolytic capacitor:
the meter will indicate the maximum current and the red LED will lamp; capacitor is not good.

4) The electrolytic capacitor is broken:
the meter will not move. Capacitor is not good.

read more

ang ibang mga kasamahan natin ay gumagamit ng sirang multitester







courtesy of Sir Rald

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sun Jul 26, 2015 7:52 pm

Sir hertz tanong lang nalilito po ako..Bale pwede ko gamitin yung ammeter at voltmeter na nabibili sa electronics shop na maliit yta yun? Tapos sir hertz doon sa pic na diagram na pinost mo sir bakit isa lang meter na ginamit at anung meter na ginamit voltmeter ba or ammeter ba?Interesado po ako dito sir..needed ko talaga ito sa workbench ko..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Sun Jul 26, 2015 10:50 pm

isang meter lang kailangan mo. pili ka lang. voltmeter puede na rin. kong may mga sira kang tester iyon ang gamitin mo. pero kong wala bili ka na lang ng mga meter

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by ultrasonic™ on Thu Aug 13, 2015 4:48 pm

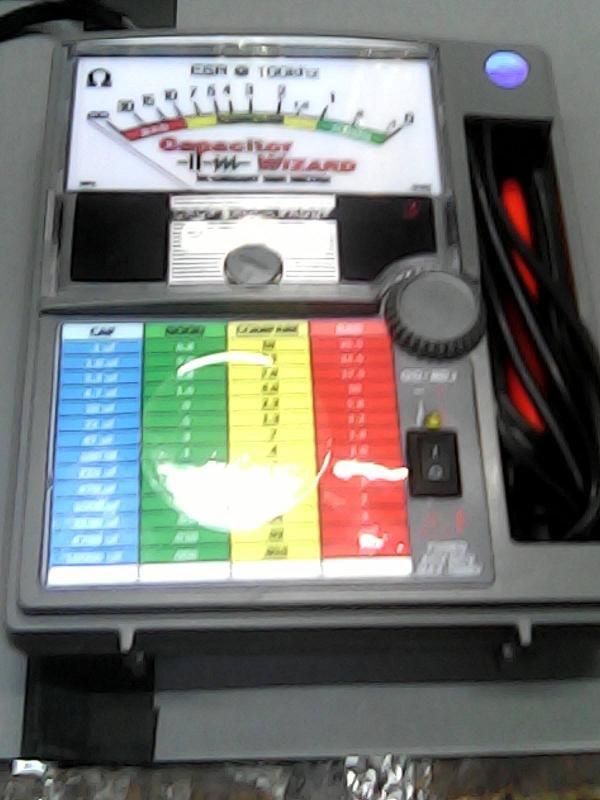

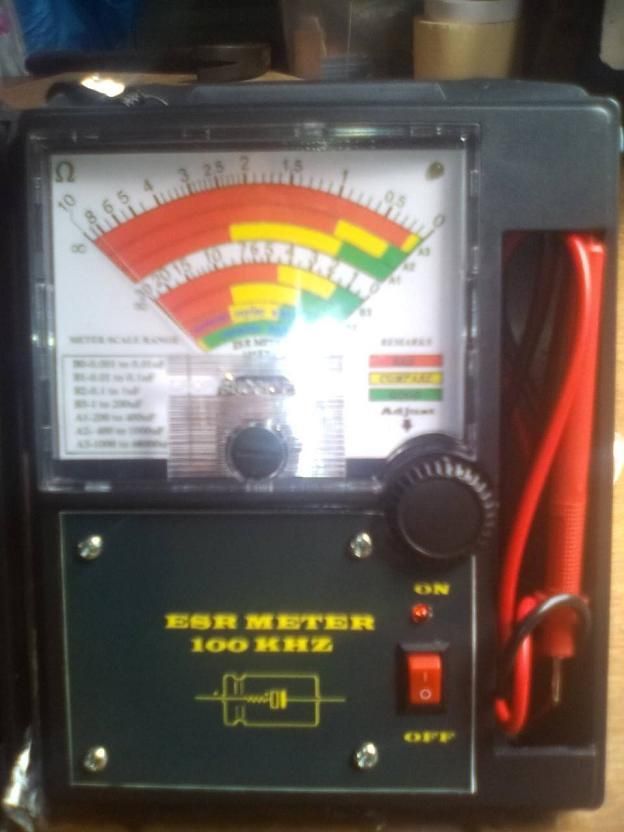

^ speaking of analog ESR.. ammeter maganda gamitin jan  ^_^

share ko rin Cguro ito rito... courtesy of Sis victor
ESRKit instruction
pang add info...

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by daltanics on Thu Aug 13, 2015 6:14 pm

share ko lang,this week may na encounter ako panasonic mn1873265t8k system ic. low voltage nagpalit ako ng system.paki check lang pin 31 kung may 5v.thanks

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sat Aug 15, 2015 9:59 am

sir salamat nito...balikan ko pa itong tv nato...salamat sir sa info...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sat Aug 22, 2015 7:40 pm

sir daltanics, nagvoltage check ako nito dun sa sinabi mo,walang 5v akong nasukat sis..ano po ibig sabihin nito?tapos parehas lang ba ito sis kasi yung mn1873265t8k system ic mo ay iba sa akin kasi ang akin ay mn1873265tb2..sana may pin out kayo nito...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Thu Aug 27, 2015 10:44 am

check mo yang pin outs ng system na ginagamit sa MX5
magkasingkatulad yata yan ng MN1873265TB2

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE
