Panasonic TC-14P2SE

Post by alvinquimbo on Sun Jun 21, 2015 3:26 pm

Mga sis patulong sana, ano kaya pwede salarin nito kasi bagsak ang B+ nya, nacheck ko na ang H-out ay ok naman pati ang mga diode nito..diko pa natry sa memory nito na magreflash.....any inputs mga sis...standby power kasi ito.. cried cried cried

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Sun Jun 21, 2015 8:19 pm

check mo ang avalanche diode at damper diode niya. ang alam ko separated yan sa h-out

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Mon Jun 22, 2015 10:17 am

ok naman sya sir hertz...ok yung diode nya..tapos yung h-out nya ay yung built in damper po sya..pero update lang po ako nito pag natry ko na yung iniisip ko..hope na makausad ako..salamat sir hertz...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by james on Mon Jun 22, 2015 5:54 pm

Kabit mo sa cable strap ang black probe mo. Then hanapin mo yung pyesang nagpapabagsak using continuity test. Unit power off and drain.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Tue Jun 23, 2015 3:53 pm

master subukan tanggalin ang vertical ic. kasi madalas yan na nasisira sa ganyan model

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Tue Jun 23, 2015 10:19 pm

salamat sis electro...additional lang mga sis,wala padin itong ginagawa ko...standby pa din..bale ang B+ nya ay nasa 36vdc..nagtanggal na ako ng h-out ganun parin..nagpalit na ako ng c945 kasi sira sya pero ala parin, pinalitan ko din SE090 wala parin,,syanga pala mga sis anu ang gamit ng SE090?Kasi sa naresearch ko error amp daw sya,anu yun?on topic, ano kaya posible sira nito sis? pati nga memory nagtry ako na tanggalin baka sakaling tumaas ang b+ pero ala parin...
Ito nga pala ang ibang parts nya mga sis:
Chroma IC-AN5165K
System con nya ay nakalimutan ko pacnxa na..salamat if may inputs na mga sis... apologies apologies apologies cried cried

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Wed Jun 24, 2015 10:26 am

parang zener diode yan master. para maging 90V ang B+

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Wed Jun 24, 2015 9:45 pm

sis update lang...wala prin ito..@sis electro nagtry ako na ihang yung vert ic pero no luck parin..try ko kaya palitan ito nang reg sis..ano kaya sa palagay nyo?..Pakiramdam ko kasi parang di pa nakakapagsaturate itong si reg kasi sa output na binibigay nya..hanggang 36vdc lang talaga..naararo ko na lahat maliban lang sa ibang resistor na maliliit..nacheck ko narin yung ibang diode at ok naman..sakit sa ulo mga sis..relax muna ako baka may inputs kayo nito mga sis.. going to cry going to cry going to cry

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by triac on Thu Jun 25, 2015 6:26 pm

sis paki replace ng memory kung may spare ka...

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Thu Jun 25, 2015 11:36 pm

cge sis try ko sis,pero wala akong pamalit nito...tapos nagkaproblema ito may hizzing sound sya..kasi may hinang ako na resistor tapos nagtry ako na i-on sya, umakyat yung b+ pero bumaba ulit balik 36vdc sabay hizzing sound...nagdududa kasi ako sa resistor na tinanggal ko parang change value sya at diko malaman ang exact value nya kasi medyo burado na ang kulay..kung may mapa kayo nito sis sana may mag-ambon...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Fri Jun 26, 2015 4:26 pm

ano chassis niya master para text natin kina master. ano regulator niya?

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by james on Fri Jun 26, 2015 8:54 pm

OVerloaded system.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Sat Jun 27, 2015 1:38 pm

just specify the part number ng resistor baka part yan ng feedback o secondary loads

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sat Jun 27, 2015 3:48 pm

sis ang gamit nya na regulator ay transistor yung C5261 yata yun...tapos sir hertz i-upload ko lang yung resistor kasi malabo yung kulay nya...salamat sa reply..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sat Jun 27, 2015 8:15 pm

Mga master at sis..ito may pics ako para mas klaro sa inyo..

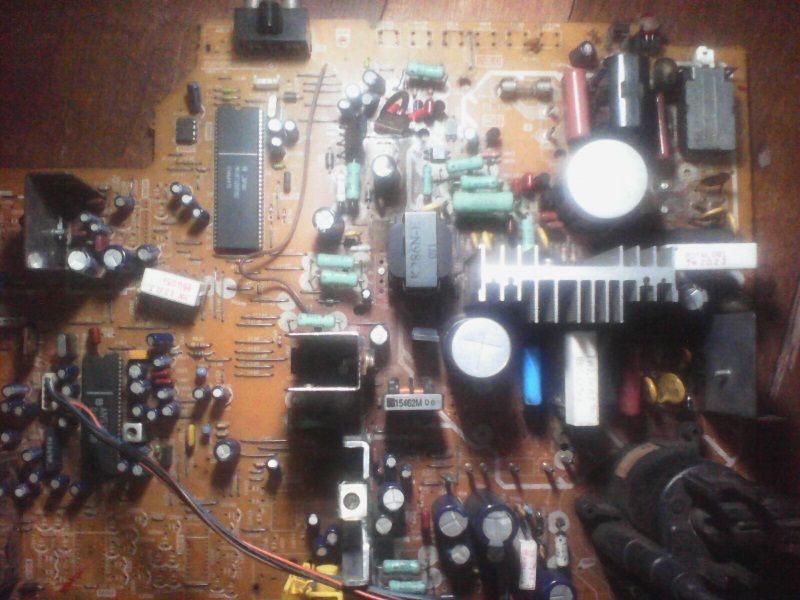

ito yung Mainboard nya..

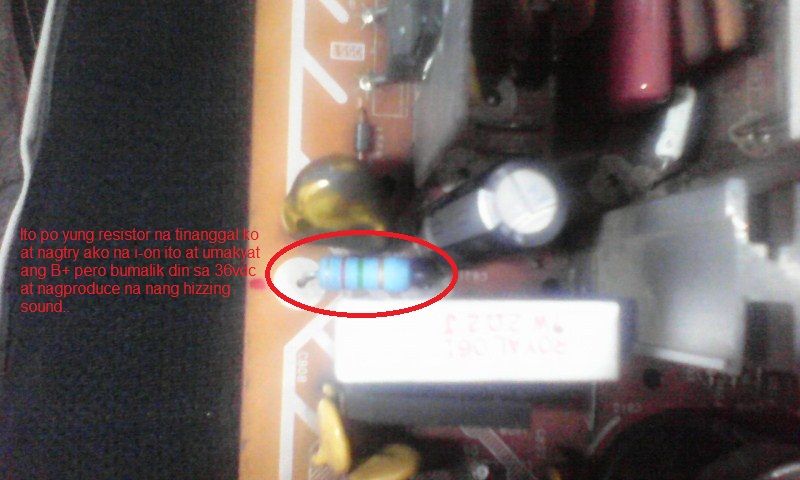

Ito ang resistor na tinanggal ko:







alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sat Jun 27, 2015 8:22 pm

Ito na yung mga pics mga sis, sana matulungan niniyo ako, gusto ko talaga masolve ito para dagdag kaalaman din..
Ito pala ang mga main parts nya:
Reg - C5241
H-Out - D2499
Vert IC - LA7837
Sound IC - AN5265
Chroma IC - An5165K
System con - MN1873265TB2
Memory - 24C02
Tuner - ENV56D18G3

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Sat Jun 27, 2015 9:34 pm

alvinquimbo wrote:Mga master at sis..ito may pics ako para mas klaro sa inyo..
ito yung Mainboard nya..


chassis px1 - 3 yan. di ko lang ma distinguish matagal na kasi ang model na yan. subukan mong pm si Sir. baka remember niya pa. sa panasonic naman siya nag work dati. puede mo download ang mx5 para may guide ka na. parepareho lang ang mga yan. pang replace ang mga Q reg sa C4804 at C5223

alvinquimbo wrote:Ito ang resistor na tinanggal ko:




for ground isolation yan. naka parallel sa c840. 8.2M ang value. maaaring madumi ang board mo kaya wala kang isolation sa Hot at cold side. linis muna gamit ang lacquer. hanap din ng loose connection at crack sa board.

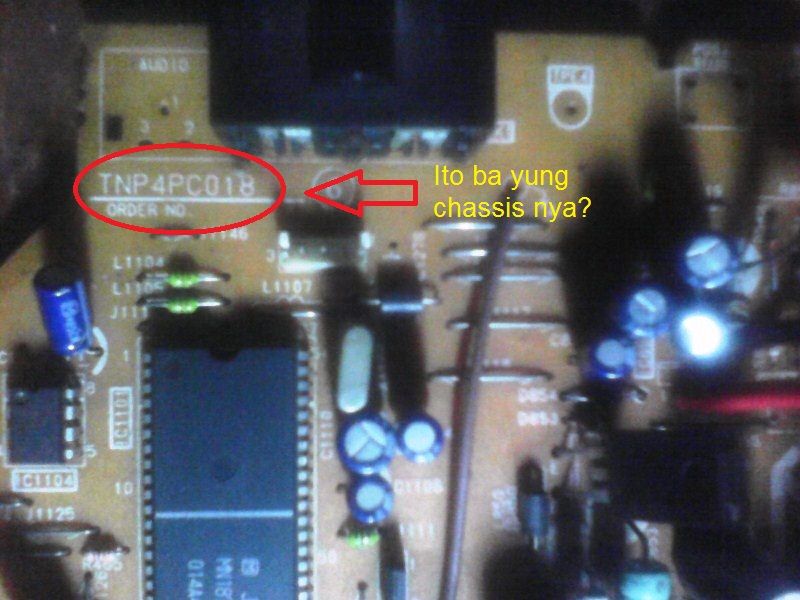

alvinquimbo wrote:

hindi yan ang chassis. yan ang eboard number niya

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sun Jun 28, 2015 7:31 am

salamat sir hertz, for ground isolation pala yun..anu po ang mangyayari pag tinanggal ito sir hertz??Mukhang nagchange value ito kasi nareread ko ay nasa 1m..itry ko pm si sir ultra sir...sana ma ok nato..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sun Jun 28, 2015 7:40 am

sir hertz anu ang password sa mx 5 na diagram?di ko maaccess... ashame ashame ashame

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Oscar on Mon Jun 29, 2015 3:28 pm

check mo lahat ng parts sa paligid ng regulator master

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Wed Jul 01, 2015 8:53 am

salamat sis oscar...suyurin ko muna...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Hertz on Wed Jul 01, 2015 9:47 am

alvinquimbo wrote:sir hertz anu ang password sa mx 5 na diagram?di ko maaccess... ashame ashame ashame

check mo pm ko

alvinquimbo wrote:salamat sir hertz, for ground isolation pala yun..anu po ang mangyayari pag tinanggal ito sir hertz??Mukhang nagchange value ito kasi nareread ko ay nasa 1m..itry ko pm si sir ultra sir...sana ma ok nato..

Sorry. my mistake.. for ground coupling pala yan. pag yan tinanggal. floating ground ang mangyayari

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Thu Jul 02, 2015 5:39 pm

salamat sir hertz...salamat sa explanation..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by Electro on Fri Jul 03, 2015 10:31 pm

mga ganyang board nga master ang sirain ang vertical. master na try muna magpalit ng vertical? try mo rn iyong mga turo ni master na direkta ng 5v sa switch. epektib din yon.

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Panasonic TC-14P2SE

Post by alvinquimbo on Sun Jul 05, 2015 6:14 pm

sis di ko pa pinalitan ng Vert ic..subuksn ko muna sis..Sis anong mangyayari kung ididirekta ang 5v sa switch.,sinabi din yun ni sir ultra.. doubt doubt

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down
