Elenberg TV ( Chassis K14SA208A / KP15SA308A ) Eboard KP21SA210A1

Post by Hertz on Thu May 21, 2015 2:59 pm

Elenberg TV

1403

Chassis K14SA208A

1570
CTV-1570

Chassis KP15SA308A

KONKA KP21SA210A1

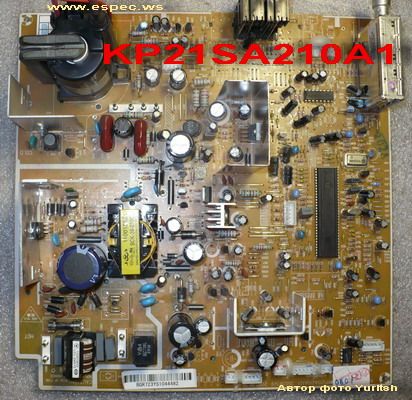

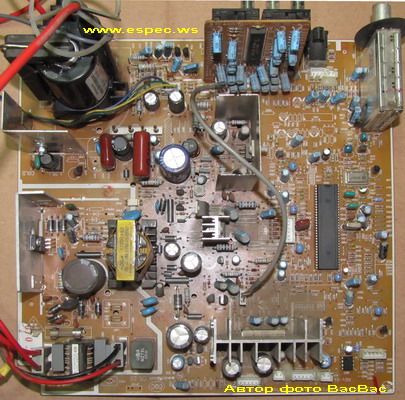

Mainboard - KP21SA210A1 090*KP21SA210A101



Reg - STR-W6753 or STR-W6756
Memory - 24C08W6 or 24C16WP
UOC - LA76936N7N57T5E or LA76938
SAW - K6264M or K2957
RGB Amp. - 2SC4544 or 2SC2482
Vertical - LA78040N
Sound - LA4268 or LA4278
Tuner - ETA-SF03/12 or TDF-3M3S
TV/AV - HCF4052BE
HOT - TT2140 or TT710
FBT - JF0501-19516 30001412 (HR80371) or BSC25-0155 30002254 / BSC25-0188 or BSC28-070 or BSC25-0146 30001482 (HR80366)





[ Chassis K14SA208A / KP15SA308A ] Eboard KP21SA210A1
