SONY TV ( Chassis BG2T ) E.board: 1-682-199-14 *KV-HA21N70, KV-HA21N80, KV-HA21M80

View previous topic View next topic Go down

SONY TV ( Chassis BG2T ) E.board: 1-682-199-14 *KV-HA21N70, KV-HA21N80, KV-HA21M80

Post by ultrasonicâ„¢ on Mon Apr 06, 2015 3:57 pm

SONY TV

Model Series:

KV-HA21N70
KV-HA21N80
KV-HA21M80



Chassis BG2T
Eboard: 1-682-199-14





Partlist:


Pow Reg: STR-F6706A, STR-F6707A
EEPROM : M24C08-BN6
System: CXP85224A-080S (KV-HA21M80), CXP85220A-083S (KV-HA21N70/HA21N80)
Jungle: TDA8844/N2 (KV-HA21M80), TDA8843/N2 (KV-HA21N70/HA21N80)
Vertical : AN5522
RGB: 2SC2611 & 2SC2785
HOT: 2SD2624
FBT : (NX-4751//M3A4)
AV SW. : TDA7438D013TR (KV-HA21M80/HA21N80)
Sound : AN5276
Tuner: BTP-AA401

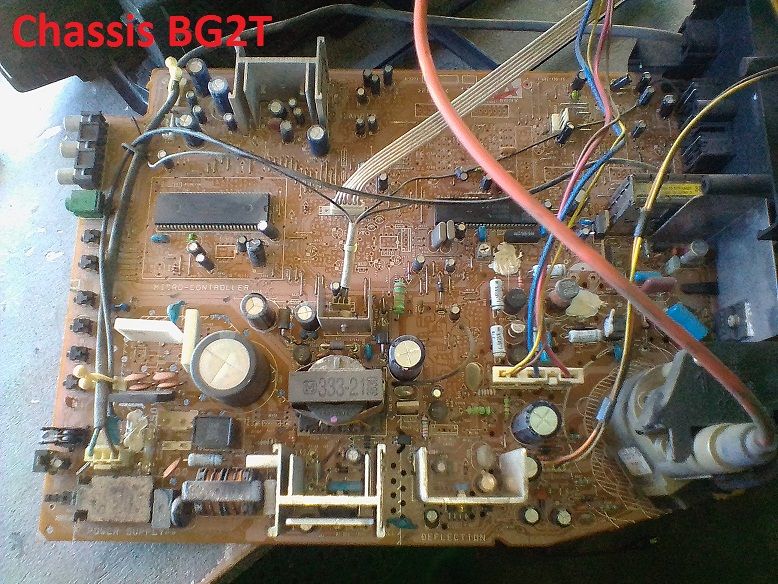

SONY TV Chassis BG2T
