Goldstar TV ( Chassis NC-44A )

Post by ultrasonicâ„¢ on Sun Jan 18, 2015 9:49 pm



Goldstar

CN26B46
GCT 2505M


Chassis NC-44A



Partlist:


Reg: STR52100A
EEPROM: 24C02
System Con: GS8308-16B
Jungle: TA8825AN
Front Caption: LA7945N
AV SW: LA7222 & GL3820
RGB: 2SC2068
Sound: AN5265
Vert: TA5K844
HOT: 2SD1879
FBT: 154-106D

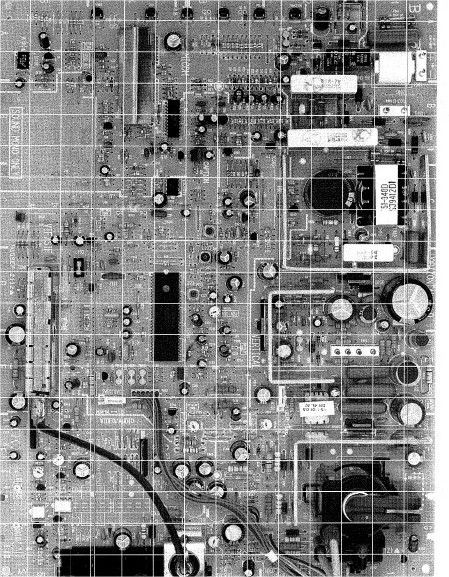

Goldstar Chassis NC-44A
