Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Fri Jan 16, 2015 7:55 pm

mga sis may pin config kayo nitong x1890ce at x1891ce?

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Sat Jan 17, 2015 9:36 pm


alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Sun Jan 18, 2015 2:45 pm

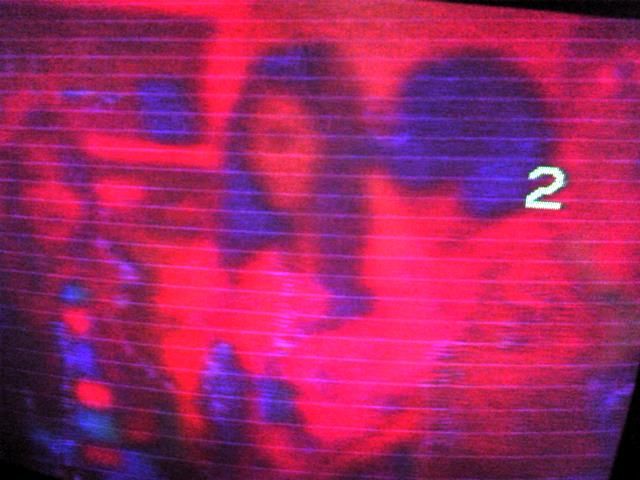

sir ultra ito ang status ng kanyang pic:

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Sun Jan 18, 2015 2:46 pm

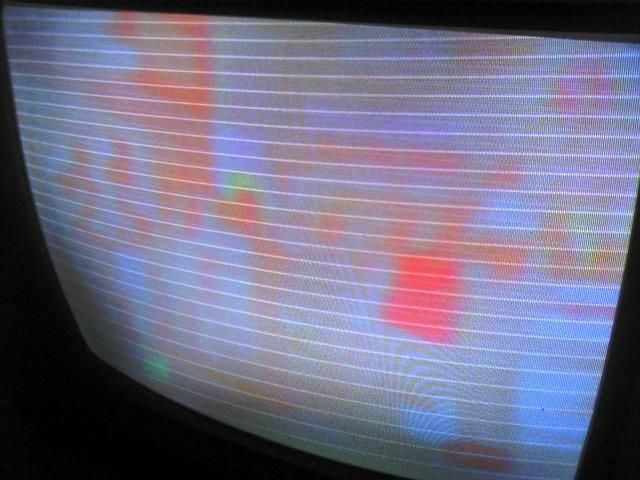

Tapos ito naman yung status nya pag tinaasan ko yung screen nya..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Sun Jan 18, 2015 2:48 pm

may kinalaman kaya ang ABL nito sir? tapos gusto ko sana malaman yung pin config ng X1891CE at X1890CE...salamat po for reply..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by ultrasonic™ on Sun Jan 18, 2015 10:02 pm

Sori ngyon lng nkabalik at nkapasok.. nahirapan ako mkapasok dahil sobrang bagal ng isp..

abwt dun sa circuit modi na without tranny ay di pwde yan Vin.. kasi di nya kya mapaactuate ang relay na opto lang...

abwt nmn dun sa 16v ay.. ok na yan.. kasi mgdadropby nmn yan pag meron ng load.. approx 13v ata yan...

abwt sa pin config.. sori medjo nahihirapan ako mg deep search sa database kasi sobrang bagal tlga.. limited na din ang clearnace level ko... kaya di ko matapon tappon ang full schem... eto nlng... alam ko na yan X1890CE ay equivalent ng TA8825AN

kya eto ang pin jan

1 - SIF AGC
2 - 1ST AGC
3 - PIF IN
4 - PIF IN
5 - P/S GND
6 - ATT
7 - LOCK DET
8 - SIF DET
9 - LIMITER IN
10 - LOOP FILTER
11 - AFT
12 - PIF VCC
13 - VCXO IN
14 - APC FILTER
15 - VCXO DRV
16 - TINT
17 - COLOR
18 - V/C/D GND
19 - R OSD
20 - B OSD
21 - G OSD
22 - WINDOW
23 - R-Y
24 - B-Y
25 - G-Y
26 - -Y
27 - Hvcc
28 - H Phase
29 - 32fH VCO
30 - Xray
31 - VERT OUT
32 - AFC
33 - H-out
34 - FBP IN
35 - SYNC SEP
36 - OSD BRT
37 - BRT
38 - CLAMP FILTER
39 - CONTRAST
40 - VCC
41 - Y IN
42 - SHARPNESS
43 - C IN
44 - APL FILTER
45 - BLACK DET
46 - VIDEO OUT
47 - RF AGC
48 - VCO
49 - VCO
50 - 2ND AGC
51 - RF AGC
52 - AFT TANK
53 - SIF VCC
54 - FM DET IN
55 - LIMITER OUT
56 - S OUT


abwt nmn jan sa latest status na post nyu...
negative pic yan Vin... try mo check ang SVC SW ng unit kng meron mn... di ko na maalala ang board.. SOri  ^_^ bka ko di mo nasadyang masahid ang shafting..

kng di nyu ma gest... hanap nlng kau ng ganito sa board...



galawin mo lng yan...

kng wla man ang ganyan board... try suyurin ang Tint adj ckt... wag ka munang mg focus sa ABL

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by Electro on Mon Jan 19, 2015 10:11 am

service switch nga yan master. pwede jumper mo na lang master alvin. hanapin mo lang ang common pin at itap kong saan siya malinaw ang display

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Mon Jan 19, 2015 9:50 pm

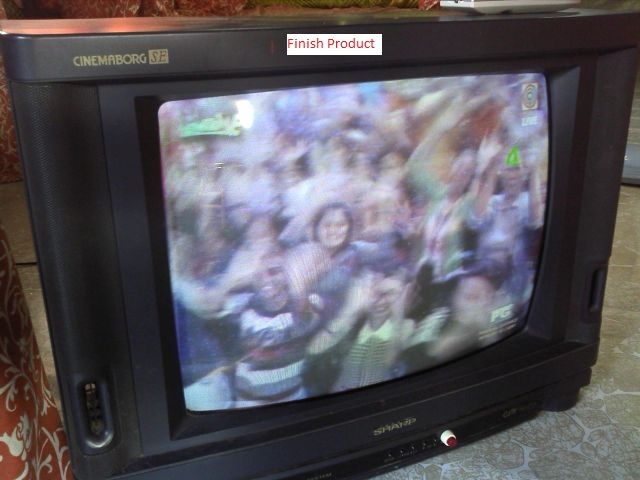

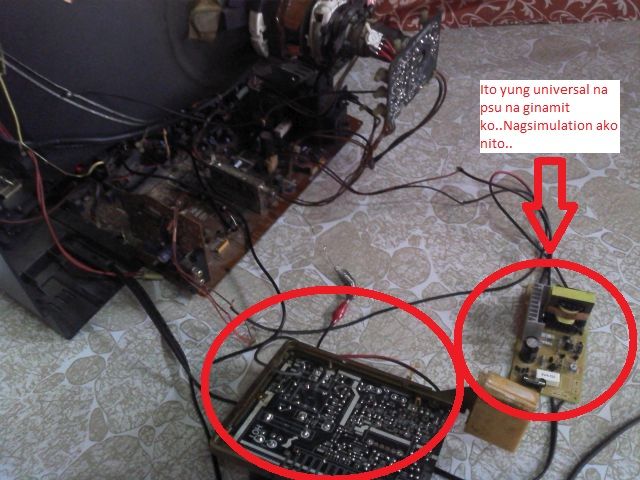

salamat sis electro..salamat din sa tym sir ultra..nasolve ko nato..salamat talaga na marami sir ultra..Ito yung mga pic ng ginawa ko..




alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Mon Jan 19, 2015 9:51 pm

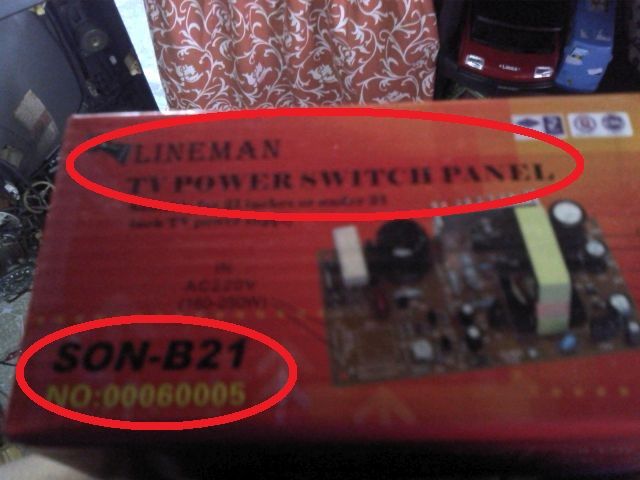

syanga pala ito yung Uni Psu na ginamit ko..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Mon Jan 19, 2015 9:55 pm

Charge to experience talaga ang nangyari sa akin..di ko namalayan na nasira ko pala yung service switch nito, kasi tinanggal ko board nito at pinasok sa isang celophane para dalahin sa planta at doon magtroubleshoot,wala kasing tym sa bahay...sumakit talaga ulo ko nito,at buti nalang nagabayan ako ni sir ultra..kaya maraming thanks sa lahat..+ kayong lahat sa akin..pwede na magkape... onion happy onion happy onion happy

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by Electro on Tue Jan 20, 2015 11:47 am

ok lang yan master. nagkaganyan din kami dati. master palitan mo ng mas mataas na wattage ang mga resistor para mas matibay

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by ultrasonic™ on Tue Jan 20, 2015 5:57 pm

oie congratz... ok lng yan.. tao lng tau  ^_^

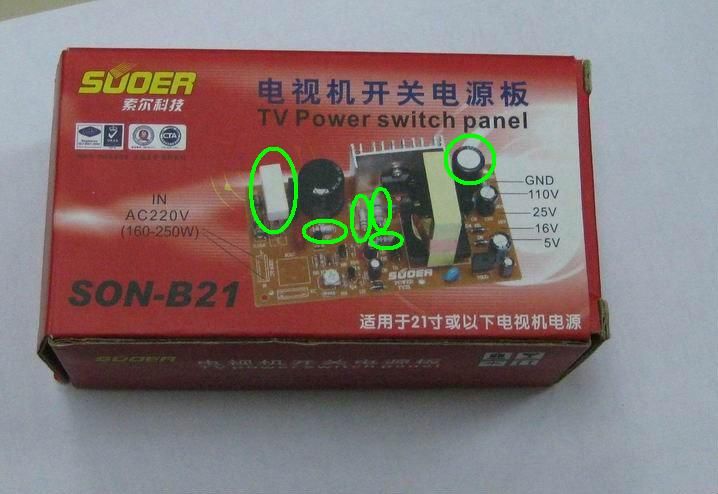

xa nga pala.. nasa sau pa ba ang unit Vin.... tama si Jeff.. my issue ang ganyang PSU.. replace mo ung mga malilit ng current limiter nya... kasi bagsak yan sa standard.. mabilis uminit...hanggang sa ayon na  ^_^



lakihan mo pa ng kunti lalo na ung wirewound... abwt dun sa secondary filter caps... optional na sau yan kasi my filter ecaps ka nmn sa main board

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Tue Jan 20, 2015 9:05 pm

nakuha na ng tumer sir ultra..siguro tatagal naman cguro yun ng ilang buwan..kung babalik papalitan ko nalang ng mas mataas na wattage..salamat sir ultra at sis electro..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by Electro on Wed Jan 21, 2015 10:23 am

nagpasakit din sa ulo ko ang ganyan. buti na dyan si master para turuan kami ni pareng oscar na patibayin ang universal power supply na binibinta ng times

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by baddypepito on Wed Jan 21, 2015 3:42 pm

naku... hindi pa ako nakagawa ng ganyan ah.... @sir ultra... paturo din ako nyan... hehehehe

sorry po sa ot...

baddypepito
C Battery
C Battery

Posts : 293
Join date : 2012-08-08
Age : 29
Location : mandaue city cebu

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Wed Jan 21, 2015 6:59 pm

ok lang yan sis..gawa ka narin sis... Very Happy

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Wed Jan 21, 2015 8:35 pm

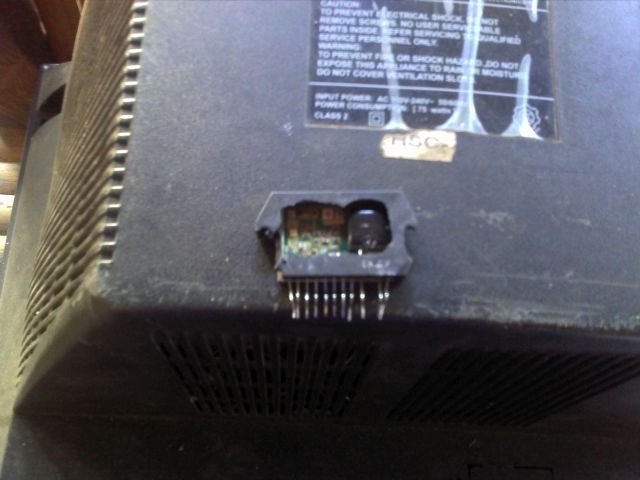

mga sis ito yung mukha pala ng IX1791CE pag binaklas yung harapan nya..hollow pala talaga yung gitna nya noh..share ko lang para sa mga newbie natin.. Very Happy Very Happy Very Happy

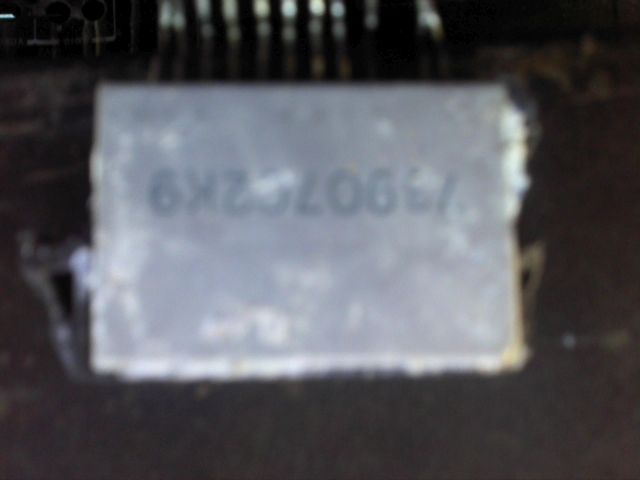

tapos may napansin din ako nito sis,kasi ito yung orig may part number sya sa likod nya di gaya ng mga peke na walang makitang number..
ito yung pic oh medyo malabo kasi camera ng phone gamit ko..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by james on Thu Jan 22, 2015 5:59 pm

Maski yung rreplacement nyan meron number kaya. Laughing

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by ultrasonic™ on Mon Jan 26, 2015 5:14 pm

ung printed number din sa harap.. pwde ding gawing batayan sa pgtukoy kong orig o japake... pg medjo pino ang mga letra ay orig yan pero pag masxadong makapal ay nako japake yan  ^_^

@Sis alvin.. +1 ka sakin... tamang tama yang pic pang tutorial  ^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Mon Feb 02, 2015 11:14 pm

salamat sir ultra sa puntos... Very Happy Very Happy Very Happy

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by triac on Mon Feb 09, 2015 5:55 pm

congrats sis alvin ang mo na talaga..di pa ako nakagawa ng ganyan sana tulongan mo ako kung gagawa ako ng ganyan.. Banana dancing congratulation

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Thu Feb 19, 2015 8:14 am

No probs sis triac...anytime sis.. Very Happy Very Happy Very Happy

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by alvinquimbo on Thu Feb 19, 2015 8:15 am

salamat pala sis..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Sharp 20V-M47 Cinemaborg

Post by triac on Mon Feb 23, 2015 8:29 am

alvinquimbo wrote:No probs sis triac...anytime sis.. Very Happy Very Happy Very Happy
salamat...welcome.. Very Happy
