LG TV ( Chassis MC-022A )

View previous topic View next topic Go down

LG TV ( Chassis MC-022A )

Post by ultrasonic™ on Sat Dec 27, 2014 9:40 am

Series Model

LG CE-28H80RX
CE-29Q40RQ
CT-25K90VE
CT-25Q20RQ
CT-25Q40VE
CT-29K30V
CT-29K30VE
CT-29Q20RB
CT-29Q40RQ
RE-28CB80RX
RE-28FZ10RX
RP-29CC25
RT-25FB30R
RT-25FB30V
RT-25FB30VX
RT-25FB70RQ
RT-29FA33RT
RT-29FA33VE
RT-29FA50RB
RT-29FB30R
RT-29FB30V
RT-29FB30VX
RT-29FB50RQ


Chassis MC-022A





Reg: STR-6654R (mono), STR-F6656R (Stereo) or STR-F6456
EEPROM: 24C16
UOC: VCT3804B D6 LG12, VCT3801, VCT3834
Sound: TDA7297 (15W stereo), TDA7266 (7w Stereo), TDA2006 (mono)
Stereo: MSP3460G B8 V3
RGB: TDA6107JF
Vert: LA7840, LA7845
Hot: 2310HI, 2SD2059, D2581
FBT: BSC28-N2326, 6174V-5003A (flat), 6174V-5003C (normal)
Tuner: TAFD-Z242D

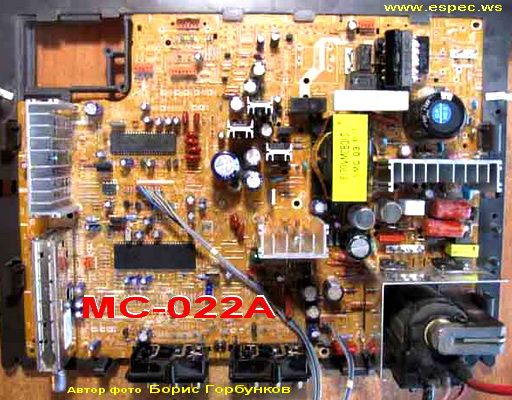

LG Chassis MC-022A
passcode: my old sttm id
