Diassembling Lens

Post by alvinquimbo on Sun Dec 07, 2014 9:57 am

Mga sis pwede ba mag paturo?gusto ko sana malaman kung paano ba tanggalin ang mga lens ng DVD or cd?di pa ako nakatry nito eh,mostly kasi pag may repair akong dvd ay supply lang ang probs..ngayon may naeencounter akong dvd na lens ang probs kahit napalitan ko na ng spindle motor..kaso wala pa akong tiwala na magtanggal ng lens...tapos ano yung anti static protic ba yun pag nagpalit ng lens?dapat tanggalin yun sya tapos palitan ng jumper?tama po ba ang pagkaintindi?salamat po for any reply... going to cry doubt

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Diassembling Lens

Post by james on Sun Dec 07, 2014 6:09 pm

Makikisali ng matuto rin magpalit neto. Sir admin ultrasonic paturo naman po.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Diassembling Lens

Post by Electro on Mon Dec 08, 2014 9:34 am

dapat nakatanggal na ang jumper master pag paandarin na

Electro
D Battery
D Battery

Posts : 1431
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Diassembling Lens

Post by triac on Tue Dec 16, 2014 6:21 pm

alvinquimbo wrote:Mga sis pwede ba mag paturo?gusto ko sana malaman kung paano ba tanggalin ang mga lens ng DVD or cd?di pa ako nakatry nito eh,mostly kasi pag may repair akong dvd ay supply lang ang probs..ngayon may naeencounter akong dvd na lens ang probs kahit napalitan ko na ng spindle motor..kaso wala pa akong tiwala na magtanggal ng lens...tapos ano yung anti static protic ba yun pag nagpalit ng lens?dapat tanggalin yun sya tapos palitan ng jumper?tama po ba ang pagkaintindi?salamat po for any reply... going to cry doubt
e share ko lng alam ko sis alvin kung may correction sa mga master dito im willing to be corrected.ito ang ginagawa ko kapag nagtanngal ng lens:yung dalawang screw lang sa kabilang rail kung saan nakainsert yung metal sa palstic..but before doing that tanggalin mo muna ang dalawang white gear at pwede mo nang hatakin ang lense...yung antic static protect dapat tanggalin through soldering iron para gumana yung bagong lense....sana makatulong po ako.... Very Happy

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: Diassembling Lens

Post by alvinquimbo on Thu Dec 18, 2014 3:46 pm

uie salamat sis triac..malaking bagay ito para may guidelines din ako..salamat sayo sis at merry christmas.. Very Happy Very Happy Very Happy

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Diassembling Lens

Post by alvinquimbo on Thu Dec 18, 2014 3:46 pm

+1 pala sayo sis..

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Diassembling Lens

Post by Electro on Fri Dec 19, 2014 12:18 pm

tama si master triac master. unsolder dapat.

Electro
D Battery
D Battery

Posts : 1431
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Diassembling Lens

Post by james on Fri Dec 19, 2014 1:57 pm

Paano yun mga sir? Pwede ba meron pictures?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Diassembling Lens

Post by danny on Wed Dec 24, 2014 2:46 pm

sayang madami akong tutorial nito noon
pati pag kalas mismo ng actuator, as in yung mismong lens lilinisin yung
mga grating lens sa loob hehehehe
na delete lahat

danny
D Battery
D Battery

Posts : 397
Join date : 2012-04-16
Location : Seattle, Washington

http://www.washingtonelec.com

Back to top Go down

Re: Diassembling Lens

Post by alvinquimbo on Sat Dec 27, 2014 6:38 pm

sayang sir danny noh..dagdag kaalaman na sana..

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Diassembling Lens

Post by ultrasonic™ on Wed Dec 31, 2014 3:24 am

tama ang mga nasa taas..
mostly 1 o 2 screws lng ang tnatanggal at mapaghihiwalay na ang optical lens sa assembly mechanism... its better aralin lng muna ang cd tray assembly nya.. bago magbaklas

sample tau ng isa.. gaya nito...
kng ganito ang dvd player ang mkakaharap nyu...

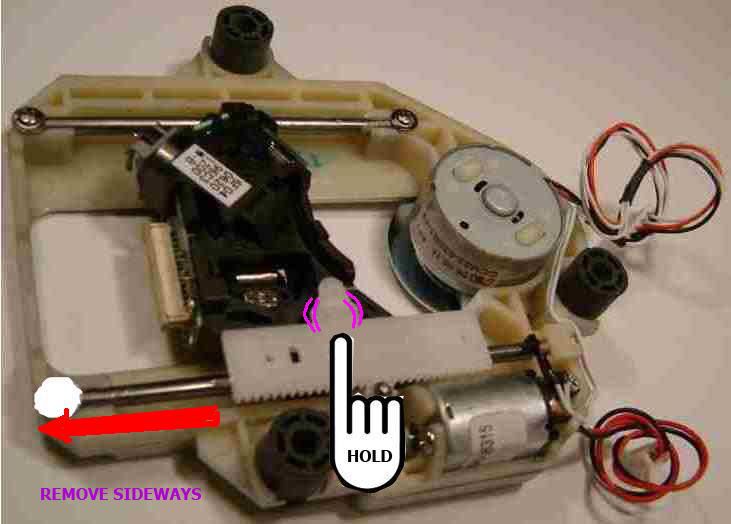

unscrew nyu lng ang screw na yan..



pgnatanggal na yan... hold o hawakan nyu ang plastic gear na saan nakaattach ang optical lens



pagnahawak nyu na yan ay pwde nyu ng tanggalin ang Metal slider... pa left side


then pgnatanggal na ang metal. isunod nyu nmn ang plastic teeth holder nya... ingatan nyu di lumipad ang Spring sa ilalim ng plastic na yan sapagkat bka tumalon yan at maiwala nyu ^_^



pgnatanggal nyu na yan ay jan nyu na maitatanggal ang optical lens... pa downward....

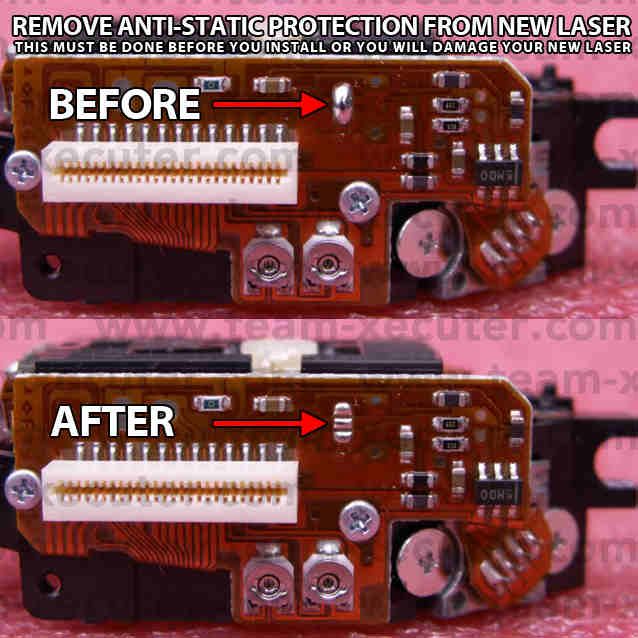

pgnapalit na kau ng bagong optical lens "as in brand new"  be sure na tanggalin nyu ang antistatic protector nya... unresolder nyu





sa pagkabit ng optical Lens ay gayahin nyu lng ang gnawa nyu sa pagbaklas... in reverse sequence procedure nga lng... eka nga, SOP natin kng ano ang huling tinanggal ay yun ang una natin ilalagy at kong ano ang unang ginalaw ay yun nmn ang huli.. inshort parang Reverse or Rewind Video   ^_^

naway makapulot aral sating mga newbie.
