Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

View previous topic View next topic Go down

Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by Hertz on Thu Aug 12, 2010 10:01 pm

21V-R70M
21V-R70m75m


Chassis No. GA-4M


Reg:  STRW5453





-http://www.4shared.com/document/nl4Pc5tl/SHARP21VR70m75m.html-


Last edited by Hertz on Mon Jun 06, 2016 3:13 pm; edited 6 times in total

Hertz
Admin
Admin

Posts : 1457
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ultrasonic™ on Fri Apr 01, 2011 9:18 pm


ito din hertz paki-edit nmn..
lagay mu ang mga major parts
sundin mu ang format ko
slamat

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ken2t on Tue Apr 05, 2011 12:19 pm

Mga sir.. good day po..

Ask ko lang po kung may schematic kayo 20V-L70 Sharp Television.

May pumutok po kayang Regulator sa 20V-L70 Sharp Television namin.. Since pumutok po, hindi ko malaman ung Model Number nung Regulator.. gusto ko po sana malaman ung model #, kaya lang nawala na din ung pumutok na regulator.. Panu ko po kaya malalaman ung Exact Model ng regulator para mabili ko, at suldahin ko nlng sa Board.

Salamat po.

More power.

ken2t
AAA Battery
AAA Battery

Posts : 1
Join date : 2011-04-05

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ultrasonic™ on Tue Apr 05, 2011 5:11 pm

@ken2t Primo yan. STRG5653 power reg nyan 5pins.
pasok ka dito --> Sharp Primo to confirm

kng di mu madescriypt ang code. check ur inbox, i sesend ko sau ang direct link

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by Hertz on Thu Apr 07, 2011 9:07 pm



Chassis No. GA-4M

Service mode
entered by SERVICE key input or CH-UP +VOL-DOWN input during reset.


Powe Reg.: STRW5453
EEPROM : BR24L04F
System Control: IXA983WJ
Jungle/Chroma : M61250CF
Vertical : AN15524A
Sound : AN17823A
HOT: TT2140
FBT : FA123WJ
Tuner : VT1Y5UP201




Zoom in

ken2t wrote:
20V-L70 Sharp

primo nga iyang L70. iba yan sa mga modelong R70
sampak mo ang STRG5653 gaya ng sabi ni sir ultra




_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1457
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by meel_2006 on Sun Sep 25, 2011 10:09 pm

ask lang me sir kung mayroon kang schematic diagram ng sharp tv na blue diamond

meel_2006
AAA Battery
AAA Battery

Posts : 6
Join date : 2011-09-25

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by lars pili on Tue Oct 04, 2011 3:54 pm

gdpm mga bos aq nga dn my ina ayos dn na sharp mdel# 20v-70m umo usok ung resis2r nya sa my ecap. na 10/250v pnta fbk. ano kya sera n2.. ska ano # un resis2r n2 bos.

lars pili
AAA Battery
AAA Battery

Posts : 1
Join date : 2011-10-04

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ultrasonic™ on Mon Oct 24, 2011 7:33 pm



gawan mu nlng ng panibagong thread iyan sa television repair thread.. we are willing to entertain u (^_^)

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by daltanics on Tue Nov 08, 2011 12:58 am



baka makatulong to,sensya na diko alam paano mag upload ng pdf file dito. kita nyo sana lahat ng service manual.mga masters paano ba mag upload ng pdf and winrar file dito?tnx

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by daltanics on Tue Nov 08, 2011 1:59 am

manual

this is complete service manual such as service menu alignment,trouble shooting guide,components replacement parts lists.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ultrasonic™ on Tue Nov 08, 2011 10:54 am


tnx deltanics +1 ka sa akin...
pwede mung e-upload sa 4shared ang manuals mu, then share mu dito ang link


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by ultrasonic™ on Fri Nov 23, 2012 11:27 am


pa ot: enidit ko tong thread..

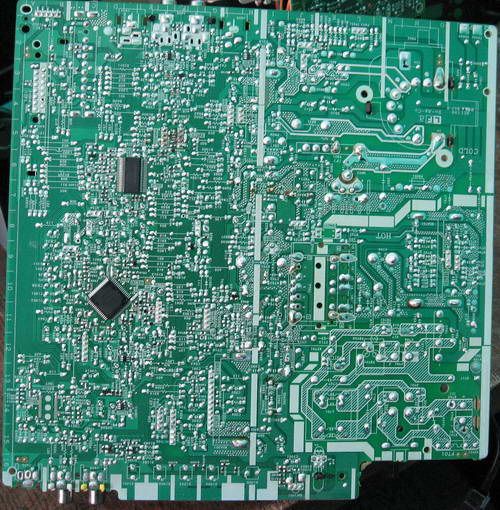

@konektado.. ininsert ko na rin etong image mo.. sna ok lng sau...
@hertz... senxa na di ko na hnintay ang abeso mu (^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by konektado on Fri Nov 23, 2012 1:13 pm

@master ultra..ok lng master..maraming thank u,,hulog ka tlaga ng langit master... Very Happy

konektado
AA Battery
AA Battery

Posts : 73
Join date : 2011-11-22
Age : 27

Back to top Go down

Re: Sharp TV ( Chassis GA-4M ) E.Board: DUNTKD373WE

Post by DJFEL on Wed Oct 15, 2014 9:35 pm

tnks neto..
