How to test HFS4 solid state relay

View previous topic View next topic Go down

How to test HFS4 solid state relay

Post by Lenaren on Wed Nov 26, 2014 10:50 pm

Master paano ko po malalaman kung may problema to...


...pwede po ba m-check sa pamamagitan ng multitester? Salamat!!

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: How to test HFS4 solid state relay

Post by alvinquimbo on Wed Nov 26, 2014 11:18 pm

sis madali lang yan...dapat may resistance reading sa pin 3 at 4 at wala ka dapat na masusukat na resistance sa pin 1at 2..Para makatiyak pwede mu suplayan yan pin3 at 4 depende sa requirements,mostly sa mga solid state relay ay 24v dc ang supply..tapos pag nasuplayan ang pin 3 at 4 ay dapat ay may marereading ka sa pin 1 at 2.. nagsisilbing switch kasi yang pin 1 at 2 pag nasusuplayan ang pin 3 at pin4.

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by alvinquimbo on Wed Nov 26, 2014 11:29 pm

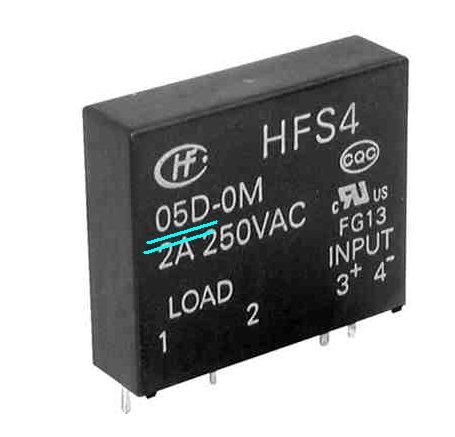

Ito yung typical application yan sis.

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by triac on Thu Nov 27, 2014 8:49 am

magandang paliwanag.agreed ako kay sis alvin..

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: How to test HFS4 solid state relay

Post by pyroelectro on Thu Nov 27, 2014 9:16 am



05D means 5vdc yan mga Bro. it can work between 4-6v. other number like 12D can operate under 9.6 to 14.4VDC 24D : 19.2 to 28.8VDC

datasheet is here.

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by pyroelectro on Thu Nov 27, 2014 9:26 am

puede rin resistance check na lang sa mismong pin 1 & 2


pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by Lenaren on Thu Nov 27, 2014 9:32 am

Thank you mga sis sa reply.... Tama po hinala ko may problema siguro to... kasi nung nag-resistance check ako shorted po ang pin 1 and 2... Kung normally open po to dapat walang reading sa pin 1 and 2... tama po ba mga sis? 1+ pogi points muna kayo... try ko muna hanap pyesa nito...

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: How to test HFS4 solid state relay

Post by pyroelectro on Thu Nov 27, 2014 9:43 am

nag weld na yan sa loob.

pyroelectro
C Battery
C Battery

Posts : 284
Join date : 2010-11-23
Age : 33
Location : Cebu City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by alvinquimbo on Thu Nov 27, 2014 6:41 pm

tama...agree..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by Lenaren on Wed Dec 17, 2014 8:21 pm

Mga master wala kasi akong mabilhan dito na piyesa sa amin... Baka po meron available sa area nyo... Kung meron po babayaran ko na lang po sa inyo sa LBC kasama charge at patong nyo...

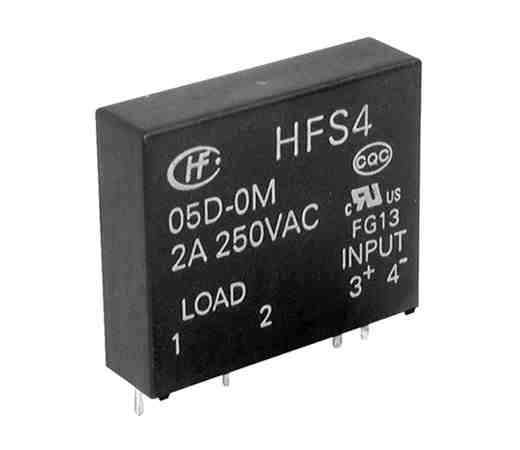

Eto po ang tamang specs nya..

HFS4
12D-1M
2A 250VAC

Salamat po ng madami!!!

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: How to test HFS4 solid state relay

Post by alvinquimbo on Thu Dec 18, 2014 3:50 pm

sis try mu kaya remedyohan..palitan mo nalang ng relay na 12v supply...

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by Electro on Fri Dec 19, 2014 12:23 pm

marami ganyan sa mga board ng tv master

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: How to test HFS4 solid state relay

Post by james on Fri Dec 19, 2014 1:56 pm

Maski relay lang yata pwede na dyan.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: How to test HFS4 solid state relay

Post by Lenaren on Fri Dec 19, 2014 7:53 pm

Salamat po mga master sa mga inputs nyo... try ko na lang po muna... jumper wires na lang muna... 1+ po sa inyo..

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: How to test HFS4 solid state relay

Post by Sponsored content Today at 10:54 am
