Start-Stop control(Industrial Set-up)

View previous topic View next topic Go down

Start-Stop control(Industrial Set-up)

Post by alvinquimbo on Mon Nov 24, 2014 9:59 pm

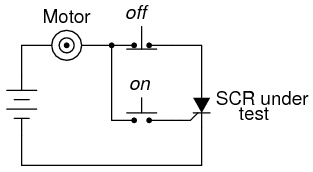

SCR circuit serves as Stop-Start control in Electronics set-up

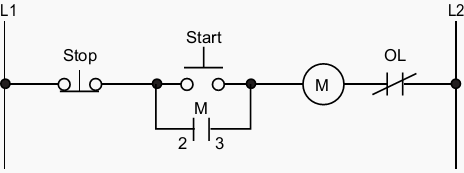

Stop-start control in Electrical Set-up:


Share ko lang ito mga sis..Kahit mga electronics tayo mga sis ay kaya natin makipagsabayan sa mga planta..Parehas lang naman sila na gumagamit ng kuryente. Sa set-up nito pinapakita ko lang ang kaibahan ng paggamit ng stop-start control in electronics at electrical. Sana ay may makuha kayong kunting ideya sa na-ishare ko..^_^

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by james on Tue Nov 25, 2014 6:16 pm

Paano yan sis?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by DJFEL on Tue Nov 25, 2014 8:34 pm

bokas lang ako mang comment neto..slp mood mona..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by Electro on Wed Nov 26, 2014 9:10 am

paano basahin at intindihin nong nasa ikalawang diagram master?

Electro
D Battery
D Battery

Posts : 1430
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by Oscar on Wed Nov 26, 2014 11:01 am

ladder diagram ata tawag ana

Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by alvinquimbo on Wed Nov 26, 2014 9:14 pm

yup tama sis sis oscar sis electro..yan ay ladder diagram..mas madali yan intindihin kasi Line1 at line 2 lang ang titignan..
pwede mo rin basahin dito sis http://www.allaboutcircuits.com/vol_4/chpt_6/1.html

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by ultrasonic™ on Sat Nov 29, 2014 12:55 pm

^ oie nyc sharing. +1 ka sakin vin..

share na rin natin to dito

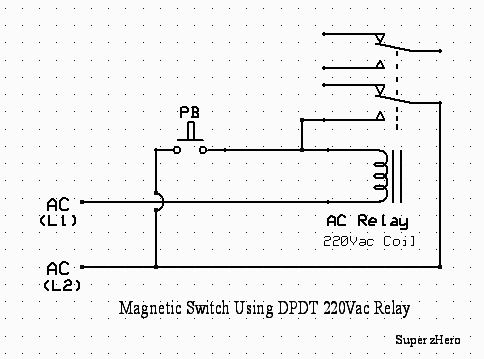

etong DPDT relay serve as Holding Sw. from sis zero ^_^


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by james on Sat Nov 29, 2014 9:09 pm

Paano yan gawin sa ladderlogic?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by Electro on Mon Dec 01, 2014 10:20 am

Oscar wrote:ladder diagram ata tawag ana

tama diay. ka remember nako. ladder diagram diay in ana

Electro
D Battery
D Battery

Posts : 1430
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by dantel2 on Wed Dec 09, 2015 11:49 am

hahaha gamay ra ang kalainan sa electronics aning eletrical

dantel2
AAA Battery
AAA Battery

Posts : 1
Join date : 2013-07-15

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by DJFEL on Thu Dec 10, 2015 8:13 pm

ultrasonic™ wrote:^ oie nyc sharing. +1 ka sakin vin..

share na rin natin to dito
etong DPDT relay serve as Holding Sw. from sis zero ^_^



parang power on delay lang to..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Start-Stop control(Industrial Set-up)

Post by ultrasonic™ on Tue Jan 05, 2016 12:28 pm

pwde din ^_^

mas safe pa at may surge protection na

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4107
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down
