Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Page 1 of 2 1, 2  Next

View previous topic View next topic Go down

Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Wed Sep 10, 2014 12:52 pm

,pahelp po sa unit n2 ,,my standby power naman po 115v ..Pag on 1 blnk lng ,ok po ang h.Out ,pag po nakahang ganun padin ,ncheck ko na lht ng pyesa sa psu at napalitan kona ang mga sirang pyesa ,pag nkahang ang memory umiilaw lng ang led indecator ..My supply po ang mga secondary

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by alvinquimbo on Wed Sep 10, 2014 8:58 pm

sis emorej6, try mo daw replace ng memory may eeprom dump yata dito..tapos anong 1 blink yan?, pag nagblink ng once ay wala na..Check mo rin Hvcc nito kung may 9volts,sali mo na din ang mga low voltage yung 5v at 12v..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Thu Sep 11, 2014 7:58 am

,,wala po akong pang flash ng memory di kc mkahanap ng rs232 ,wala pong supply ang 9v at 12v.. San po ba yun nanggaling ??? .,un pong 1 blink 1 blink lang po talaga pag press ng ch. 1 blink lng.

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Thu Sep 11, 2014 2:34 pm

fdownlaod ka master ng chassis g3e. iyan yata ang diagram ng unit mo. http://aelexian.4rumer.com/t276-sony-chassis-g3e

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Thu Sep 11, 2014 2:36 pm

ito ang meaning ng blinking code master.
http://aelexian.4rumer.com/t254-tv-blinking-codes

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Thu Sep 11, 2014 2:37 pm

Emorej6 wrote:,,wala po akong pang flash ng memory di kc mkahanap ng rs232 ,wala pong supply ang 9v at 12v.. San po ba yun nanggaling ??? .,un pong 1 blink 1 blink lang po talaga pag press ng ch. 1 blink lng.

galing sa flybak ang source ng 9v master

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Thu Sep 11, 2014 4:55 pm

,ano po ba ibig sabhin ng self diognoze ? Hindi po ako makakadownload ng diagram ..Cp lang po gamit ko ngaun ..Galing nga po sa fbt ang supply ng 9 at 12v ..Bakit po ganun wala pong supply or pulse ang hdt ..

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by triac on Thu Sep 11, 2014 6:25 pm

abang at makikinig para may matutunan...

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by alvinquimbo on Fri Sep 12, 2014 7:19 am

@sis Emorej6 kaya walang pulse yan kasi walang nagtritrigger sa HDT mo. ang nagtritrigger yan ay nasa Jungle IC kaya dapat macheck mo kung may Hvcc(9v) sa isa sa mga pin ng jungle,kaya download mo nalang yung mapa na na-ilink ni sis electro para makita mo..then about sa self diagnose ay di ko rin alam yan sis ts..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Fri Sep 12, 2014 7:31 am

,wala nga po akong pc ,cp lng gamit ko ngaun ,try ko na lng po sa comp. Shop tapos iprint ko nalang ..Tnx po .,my iba papo ba kaung idea?

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Fri Sep 12, 2014 7:59 am

,penge naman pong pin out ne2 m34302mp8-716sp

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Fri Sep 12, 2014 11:16 am

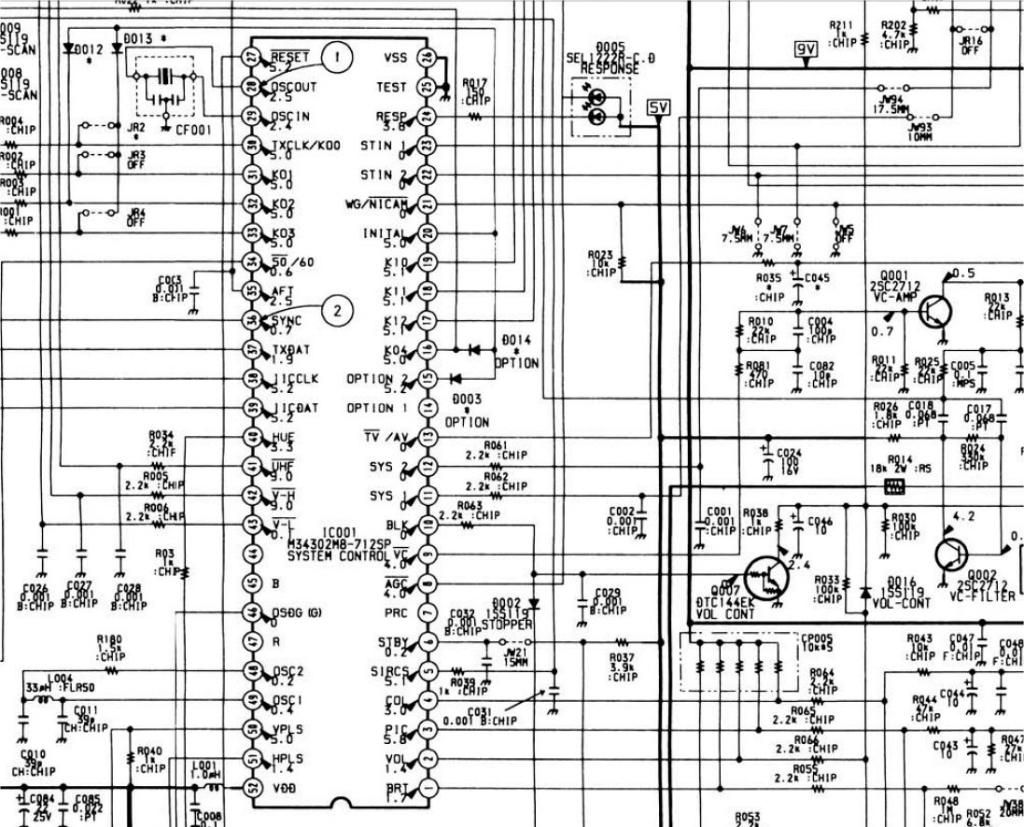

ito ang pinout niya master Emorej6



Last edited by Electro on Fri Sep 12, 2014 11:17 am; edited 1 time in total

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Fri Sep 12, 2014 11:16 am

mali yata ang nabigay kong diagram master. Sorry. dapat ito yata

http://aelexian.4rumer.com/t574-sony-tv-chassis-scc-f21j-kv-xxxxmt-kv-xxbmr1

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Fri Sep 12, 2014 11:44 am

mga master. ang self diagnosis ay gaya din ng service mode. maraming mga osd character na lalabas sa tv para mahibal an nato asa dapit na section ang naay problema. imbis na DISPLAY, 5, VOL+ at power ang pipindutin para makapasok sa service mode. dapat Display, Channel, 5, volume -, at Power naman para makapasok sa Self Diagnostic screen. lalabas ang mga code. dun natin makikita master ang error niya gaya ng OCP, OVP, VSTOP, HSTOP. iyong ibang code di ko na alam master. sorry hindi ako masyadong magaling magturo gaya nina master ultrasonicâ„¢, master Hertz at Mam Princess
sa kanila lang kasi ako natoto.. laki ng tulong nila samin sa repair

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Fri Sep 12, 2014 4:35 pm

,tnx po sa pin out ,
,ganun po pala un maraming salamat master .,standby lng kc eto eh.

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Sat Sep 13, 2014 12:58 pm

check mo din master kong ok ba ang 5v standby

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Sat Sep 13, 2014 5:35 pm

,ok naman po ang 5v.

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Tue Sep 16, 2014 11:04 am

nasubukan mo na ba master magpalit ng vertical ic

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Tue Sep 16, 2014 1:47 pm

,ok po ang 12v at 5v sa secondary ,,nahang ko na po ang vertical eh hndi ko pa natatry magpalit. ,madme napo akong nakitang open na resistor at change value . .Napgpapalitan ko napo ,my problema ngaun ,na stock kc at nadag anan ng ibang unit ang board ,naputol ung c607 n capacitor ,f603 fusable ,at r606 n resistor pati c629 n capacitor ,anu po kaya value nyan ? Tnx po ,wala po akong pc kaya di ko maopen ang diagram .,kung pwede po sana kayo nlng mag open .

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Tue Sep 16, 2014 2:14 pm

,eto napo pala mga napalitan ko na sira ,,d607 signal diode 4148 nlagay ko dna kc mkta ang value eh. .D608 ,r2m ,ey117 ,n20 ,1 ohms resistor nlagay ko ,r563=180k ohms ,r553 2.2k ohms ,r854 ,di na mbasa sa tngn ko fusable lng eto ,1ohms nilagay ko ,r833 10 ohms ,r816 at r857 270k ohms ,pati chroma ic pinalitan ko na dn .

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by alvinquimbo on Tue Sep 16, 2014 10:07 pm

@sis ts, tapos naging ok na ang unit? dami palang nasira yan..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Wed Sep 17, 2014 7:08 am

,ganun pdn po ang unit ,ngaun nag e stock n ng voltage sa s psu at wala ng nalabas n voltahe sa sec. ,dhl nung mga nawalang components sa psu

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Thu Sep 18, 2014 11:44 am

palitan mo muna ang mga sirang pyesa master. pag wala pa rin. subok palit ng bagong regulator

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Emorej6 on Thu Sep 18, 2014 5:35 pm

,master kulang napo ang pyesa sa psu ,anu kaya value ne2 r608 at c607 ,naputol po kc ,,psu pdn po un malapt sa regulator nawala po kasi

Emorej6
AA Battery
AA Battery

Posts : 121
Join date : 2014-09-05
Age : 20
Location : Mindoro

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya

Post by Electro on Fri Sep 19, 2014 12:09 pm

ito ang nakalagay sa diagram master.
r608 - 220 ohm fprd connect siya sa collector terminal ng a1162
c607 - 0.33uf mps connect siya sa pin3 ng regulator strs6307
r603 - 68 ohm 3w connect siya sa pin 5 ng regulator

Electro
D Battery
D Battery

Posts : 1443
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Help sony kv-14bmp1 ,standby pag on 1blink lng sya
