Wiring Diagram of Flourescent Lamp

View previous topic View next topic Go down

Wiring Diagram of Flourescent Lamp

Post by Digitap on Tue Nov 09, 2010 7:30 pm


_________________________________________________________

Have you ever wondered how a fluorescent light works? Even though they're nearly as commonplace as incandescent fixtures, their unusual shape and well-known idiosyncrasies make them seem more mysterious.

There's more than a difference in appearance separating fluorescent and incandescent lamps. An incandescent bulb generates light through heat. When electrical current passes through the tungsten filament, it heats to the point where it glows and gives off a yellow-red light. To keep the filament from burning up immediately, it's housed in a vacuum. Even so, the intense heat of the filament ensures a comparatively short and expensive life span.

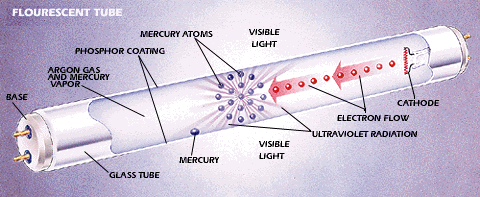

A fluorescent lamp has no filament running through it. Instead, cathodes (coiled tungsten filaments coated with an electron-emitting substance) at each end send current through mercury vapors sealed in the tube. Ultraviolet radiation is produced as electrons from the cathodes knock mercury electrons out of their natural orbit. Some of the displaced electrons settle back into orbit, throwing off the excess energy absorbed in the collision. Almost all of this energy is in the form of ultraviolet radiation.

To turn this radiation into visible light, the inside of the tube has a phosphor lining. The phosphors have the unique ability to lengthen UV wavelengths to a visible portion of the spectrum. Put another way, the phosphors are excited to fluorescence by bursts of UV energy.

The easiest fluorescent fixture to explain is a design offered by Sylvania in 1938. This early preheat model is no longer made, but millions are still in service, and its principle design features are found in every new fixture.



Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by NERAKZ on Fri Aug 03, 2012 4:36 am

THANKS FOR THE INFO TS ... I ONLY HAVE A QUESTION WHAT IF I WOULD LIKE TO CONVERT OUR FLOURESCENT TO DC SUPPLY WHAT SHOULD I DO???

NERAKZ
AAA Battery
AAA Battery

Posts : 2
Join date : 2011-08-06

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by Digitap on Fri Aug 03, 2012 12:39 pm

how much your dc source?
is it lower rather that your ac?

you need a inverter circuit.

Digitap
Admin
Admin

Posts : 887
Join date : 2010-09-03
Age : 25
Location : Makati City

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by nerfe on Sat Oct 27, 2012 3:41 pm

here's my DC powered version, still the source is AC, but the use of diodes in bridge connection eliminates the use of starter thus avoiding flicker during switching cycles.



20W fluorescent tube & ballast should be used for the above value of capacitor Smile

nerfe
AAA Battery
AAA Battery

Posts : 35
Join date : 2012-10-03

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by nerfe on Sat Oct 27, 2012 3:50 pm

caution should be exercised at all times, the above ckt can have peaks as high as 600VDC, make sure all exposed parts must be insulated.

How the ckt works? Simple, the high voltage generated "excites" the mercury atoms making them move at a very high speed & striking the phosphor coating thus the light, no pre-heat necessary...

nerfe
AAA Battery
AAA Battery

Posts : 35
Join date : 2012-10-03

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by Hertz on Thu Nov 01, 2012 9:07 pm


thanks for sharing sir nerfe.

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by DJFEL on Sat Dec 15, 2012 11:26 am

pa tambay...

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Wiring Diagram of Flourescent Lamp

Post by Sponsored content Today at 6:11 pm


Sponsored content


Back to top Go down
