Re: Troubleshooting Guidelines

Post by james on Fri Nov 02, 2012 11:00 pm

May pdf kaya neto si sir admin?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Troubleshooting Guidelines

Post by dodongleo on Tue Nov 06, 2012 11:45 am

up ko ulit,,baka meron na bagong lesson mga sis natin,,

dodongleo
AAA Battery
AAA Battery

Posts : 37
Join date : 2012-08-08

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Wed Nov 07, 2012 5:26 pm

james wrote:May pdf kaya neto si sir admin?

naku wla akng pdf eh sori.... (^_^

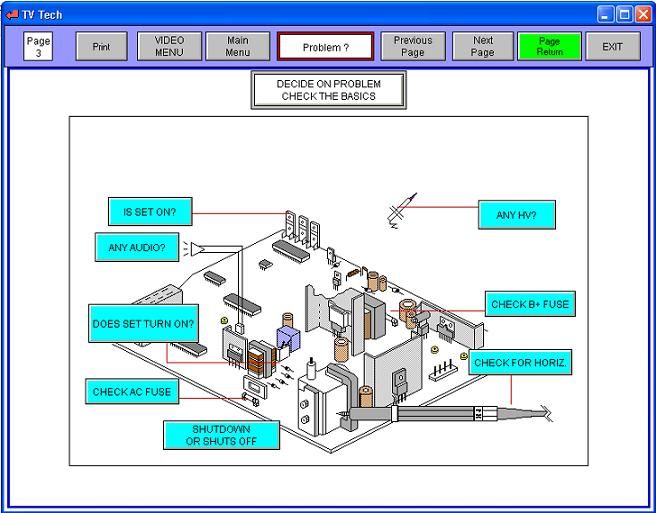

eto nlng muna... TVTIFS software application galing pa rin sa elab...
mpupulutan din rin naman ng aral lalo na sa mga di pa masxadong familiar ang tv...






_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by james on Thu Nov 08, 2012 4:59 pm

Sana meron ka rin pong pdf copy sir admin para mas maganda at mapag-aralan. tnx

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Troubleshooting Guidelines

Post by DJFEL on Thu Nov 22, 2012 9:53 am

nice one master ultra..maka 2long to sa lahat nang tec ka gaya ko..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Troubleshooting Guidelines

Post by kaholito on Sat Dec 22, 2012 11:35 pm

tanong ko lang mga maaster ung anode cap pede po bang lgyan un ng grasa pra hindi sumingaw?nilinisan ko na ng thinner natangal na nga ung pulang pintura.mga ilang araw ganun n nman singaw uli?meron ksi akong tinanggal noon malagkit loob ng anode cap nya hindi ko alam kung ano nilagay nya?

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Wed Dec 26, 2012 12:54 pm


yapz grease/grasa sis pwdeng panglagay jan.... or insulated varnish ang ipahid (^_^ kakapit na yan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by james on Sun Jan 06, 2013 8:24 pm

Ok lang bang tanggalin ang hot during testing. Para Malaman ang B+?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Mon Jan 07, 2013 5:13 pm

yapz pwde

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by DJFEL on Fri Jan 25, 2013 1:01 pm

abang nalang...

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Troubleshooting Guidelines

Post by kaholito on Sat Jan 26, 2013 6:26 pm

Tanong lng po mga master.un po bang x ray protection circuit nasa loob po ba un lagi ng jungle ic?Un pong video mode nagka roon ng raster .pag naka tv mode nman parang naka video mode naman walang raster.wla ding makuha chanel kahit auto seach.may kinalaman po ba ang jungle dun?

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Tue Jan 29, 2013 11:44 am

kaholito wrote:Tanong lng po mga master.un po bang x ray protection circuit nasa loob po ba un lagi ng jungle ic?

ang masasabi ko lang ay Oo. natitriger yan madalas pag sira ang snubber capacitor

Understanding the x-ray protection circuit in Television
High Voltage shutdown commonly referred to as X-Ray protection circuit shut down the horizontal deflection in the event of a detected faults if that faults causes CRT radiations to exceed acceptable limits.
It is important to note here that HV can increase even if the power supply is okay; a good example is if the safety capacitor (snubber) opens or looses some of its original capacitance.
If any of the above faults occurs in Television, It will cause the Fly back to produce undesirably high secondary voltages. The good news is that as the HV increases all other output from the fly back also increases and therefore this circuit of X-ray protection is not attached to the HV output which could have caused more challenges to the designers but another output of low voltage is monitored.
Usually a voltage reference is taken from the FBT and rectified by a diode to get a DC voltage, this DC voltage is applied to a precision resistor divider, the values of these resistors are chosen to produce correct X-Ray protection trip threshold for each CRT.
Below you can see a simple X-ray protection circuit usually found in CRT Televisions.


If the voltage increases above normal (say 13 Volts) the Zener diode which in our case is a 12 Volts Zener will conduct and voltage will appear at the X-ray in pin. The X-ray protection pin is usually zero volts when things are normal and if this pin get voltage, the I.C internal shutdown circuit will trigger and shut the horizontal out signal and hence shutdown the Television.
This will then prevent dangerous X-ray being emitted which could have otherwise caused health hazard to the user or even break the CRT tube.


Conclusion

I think now you can see why you should never replace the safety capacitor with one with lower capacitance value because this will cause the HV to increase a lot and hence emit this dangerous X-ray radiation.
One sign that the snubber capacitor has lost some of its original capacitance is that the screen usually become narrow (E/W) and sometimes you can even hear cracking sound caused by this excess HV. When you get these symptoms this is an indicator that this capacitor has lost some of its original capacitance and replacing it usually cures the problem.
Wishing you all the best
Humphrey Kimathi
Author CRT Television Repair course

http://humphreykimathi.blogspot.com/2011/07/understanding-x-ray-protection-circuit.html

kaholito wrote:Un pong video mode nagka roon ng raster .pag naka tv mode nman parang naka video mode naman walang raster.wla ding makuha chanel kahit auto seach.may kinalaman po ba ang jungle dun?


check mo ang switcher para sa Video

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Troubleshooting Guidelines

Post by kaholito on Tue Jan 29, 2013 3:40 pm

ano po ba karaniwang value ng snubber cap.anong pin po ng fb nakakabit ang x-ray ckt.un pong sinasabi nyong switcher ng video san po makikita un.transitor po b ito?

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: Troubleshooting Guidelines

Post by Lenaren on Wed Jan 30, 2013 12:36 pm

waiting waiting....

Lenaren
C Battery
C Battery

Posts : 270
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Wed Jan 30, 2013 6:22 pm

@kaholito hindi ko maibibigay sayo ang eksaktong number ng snubber capacitor. paiba iba kasi iyan depende sa brand ng mga tv. 2KV minsan. makikilala mo iyan pag may malaking Mylar capacitor sa Collector at Ground ng H-out.

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Wed Jan 30, 2013 6:42 pm

kaholito wrote:ano po ba karaniwang value ng snubber cap.anong pin po ng fb nakakabit ang x-ray ckt.un pong sinasabi nyong switcher ng video san po makikita un.transitor po b ito?

sa mga lumang tv. transistor pa ang gamit. sa mga bago ngayon ay IC na

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Troubleshooting Guidelines

Post by kaholito on Wed Jan 30, 2013 7:25 pm

salamat sa mga info mga master.un pong luminance ng tv pano po troubleshoot.?minsan po ksi parang kulang sa kinang ang tv.kahit sagad mo ung contrast.sign po b un na palitan na ang tube?

kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Thu Jan 31, 2013 1:56 pm

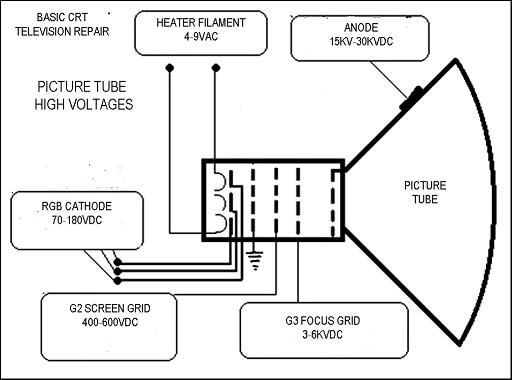

@sis kaholito kng medjo madilim.. siguraduhin munang ok ang Screen supply. try to adj. muna.. pg no luck at retrace line lng ang npapalakas.. try to check abl ckt lalot ang mga resistor sa rail lines nya... pg ok naman jan

check nmn kng ok ba ang Video Supply vrms 180V.
its better to direct sub ng video caps para mtiyak na di ka pumapalya...

kng duda sa tube try to rejuvinate

pg nagawa na halos lhat ng mga binanggit ko...
pwde din sa eeprom yan... but defende pa rin sa model at desenyo ng tv sets... bka kasi depihit pa ang unit.. at mpupunta tau sa trimmr suspection at change value resistor

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by james on Fri Feb 01, 2013 4:15 pm

Paano sir admin yung minsan parang me natitirang maliwanag? galing ng ultra bright scene tapos bigla mag low brightnest.

Tapos yung minsan sa parteng kaliwa ng tv screen madilim, hindi pantay sa kanan?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Sat Feb 02, 2013 12:31 pm

kng nagawa na ung nbanggit ko sa taas lalo na ang my knalaman sa video supply at ok ang screen pot ng FBT.. pwde nyu hatulan jan ang CRT socket at Picstubes...

regarding nmn sa kaliwa.. kng liwanag lng ang issues ay pwde picstube pa rin yan...

singit ko na rin ito...
kasi common probs nmn eto...
kng my ma eencounter kau na gaya nito.. both av & tuner mode
na parang gumagalaw na alon na linya sa display from top to bottom o vice versa na di gumagalaw ang image.. try nyung palitan ng Primary/Main Filter Caps sa PSU..



o minsan kita nyu na tlaga ang parteng wavey form sa gilid ng tube.
mnsan sa left side lng o di kya sa right side lng.. or Both

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by james on Sat Feb 02, 2013 2:25 pm

Ang tawag pala ng iba eh bleeding. Halimbawa itong letter " A " Nakaflash sa screen from left paright side ng A meron parang wash out na bleeding na liwanag parang nagkakameron ng halo effect. Lalo na kung flashing ng bright to low bright scene. Parang may trail ng bleeding.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Troubleshooting Guidelines

Post by DJFEL on Fri Feb 08, 2013 10:23 am

abang nalang....daming ma totonan dito..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Troubleshooting Guidelines

Post by danyenz on Sat Mar 16, 2013 11:58 pm

wag nyo kalimutan na lahat na sucessful na repair nyo kahit anong unit,dapat mag record kayo lagay nyo complete detail kc darating ang araw muli nyo ma iincounter same trouble, alam na agad ang dapat gawin base sa record nyo...sana makatulong ang tip na to.. Very Happy

danyenz
AAA Battery
AAA Battery

Posts : 21
Join date : 2011-04-29
Age : 49
Location : albay

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Sun Mar 24, 2013 10:35 pm

james wrote:Ang tawag pala ng iba eh bleeding. Halimbawa itong letter " A " Nakaflash sa screen from left paright side ng A meron parang wash out na bleeding na liwanag parang nagkakameron ng halo effect. Lalo na kung flashing ng bright to low bright scene. Parang may trail ng bleeding.

subukan i white balance. baka lihis na yan kaya nakakafeeding. puede din makaaffect ang sub brightness at sub contrast sa ganyan

danyenz wrote:wag nyo kalimutan na lahat na sucessful na repair nyo kahit anong unit,dapat mag record kayo lagay nyo complete detail kc darating ang araw muli nyo ma iincounter same trouble, alam na agad ang dapat gawin base sa record nyo...sana makatulong ang tip na to.. Very Happy

tama. maganda din ang ganyan

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down
