Re: Troubleshooting Guidelines

Post by sherlanmamaril on Fri Nov 13, 2015 12:59 pm

for instance abl po talaga sira master, panu ko malalamng tube ,. jungle  etc ang sira po , ilan po supply nyang abl ? dc din po ito diba

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: Troubleshooting Guidelines

Post by geof79 on Mon Feb 29, 2016 2:51 pm

Ask ko lng mga master. Bkt my hndi 2mut0gma na crt socket kht pareho lng un bilang ng pin? 2lad nun my metal na nkpalibot taz un 1 klase wla, ng try kc ako mgreplace. Ang dati nya un wlng metal. Taz pg power ng tv sound lng at wlng picture na dumisplay. Ibinalik ko un dati merun pero plitan n kc mtagal mgliwanag pg bg0ng buhay.

geof79
C Battery
C Battery

Posts : 205
Join date : 2015-05-30
Age : 36
Location : Cam. Norte

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Tue Mar 22, 2016 12:15 am

meron kasing iba na may N.C pin. "No connection" pero pag kinabit mo na ang bagong crt socket ay nako connect ito na hindi dapat. nasasali kaya blackout ang nangyayari. mas maganda dyan kong gamitin mong guide iyong orig. eksamenin mo ang bawat pin. kung anong pin ang dapat hindi naka connect sa board ay wag mo iyong i connect. putulin kong maaari. Meron din naman sitwasyon na misleading ang pin orientation kaya double check na lang

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Troubleshooting Guidelines

Post by geof79 on Tue Mar 22, 2016 7:57 pm

Tnx sir hertz sa pgsagot. Pnlitan ko na nga lng ng 2lad nun dati.

geof79
C Battery
C Battery

Posts : 205
Join date : 2015-05-30
Age : 36
Location : Cam. Norte

Back to top Go down

Re: Troubleshooting Guidelines

Post by Electro on Tue Mar 29, 2016 9:27 pm

naka try din ako ng ganyan master pero sa sharp cinemaborg. may isang pin na hindi dapat kasali pero nasali sa pag connect. ayon may retrace line na lumabas  Very Happy

Electro
D Battery
D Battery

Posts : 1433
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by sherlanmamaril on Mon Apr 11, 2016 3:10 am

still reading up Smile

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: Troubleshooting Guidelines

Post by ultrasonic™ on Mon May 23, 2016 5:26 pm

Lipat na rin natin ito dito para madaling mabasa at hindi agad matabunan   lol!

Modifying STRS-X70X na maglagay ng external tranny sa labas as serve as a Regulator..
yung pin1 at pin 3 lang ang e cut niyo... iwan ang pin2 nakaconnect pa rin sa mainboard/chassis board kasi yan ang internal common ground ng STRS



then rewire nlng according sa pin config ng tranny gagamitin..

para hindi mawala kayo sa pag operaha ay sundan niyo lang ang mga nasa larawan..

ito ang internal & pin config ng STR-SX70X as your guide

ito naman ang Actual pic config niya  ^_^

Note: lahat ng nakaviolent pin ay iwan nakaconnect din sa board

ito naman ang Actual Footage ng finish surgery ^_^


ito naman ang successful bypass kasi my standby at Power na ^_^




About naman sa Tranny na ilalagay kahit anong Tranny ang ilagay niyo bastat NPN lang ay gagana yan... pero syempre piliin niyo yung mga common na QReg na gnagamit sa TV
 like: C2498, C5038, C3552, C4429, C4458, D1884, D5299, & etc.. pati nga ang Qreg ng mga China board ay swak dyan....  ^_^

ang process ng Modification na ito ay gaya din ng pag ooperaha natin sa mga STK73907 or IX1791CE
ang pinagkaiba lang ay NPN tranny ito at FET or MOSFET naman yung sa mga IX at STK...

kung may extra naman kayong STRS na ok ang internal tranny pero sira naman ang voltage regulation niya like low B+ or high B+ o minsan naman ay Palyado.. nag O auto shutdown & etc... ay pwede niyong din yung gamitin gaya nito  ^_^


images courtesy nga pala ay internet laman lalo na ky Abdi Gunawan

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Troubleshooting Guidelines

Post by sherlanmamaril on Tue May 24, 2016 2:13 am

Laking tulong photo at kaalaman

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: Troubleshooting Guidelines

Post by sherlanmamaril on Wed May 25, 2016 10:21 am

Pede pi ba magpaturu maglagay ng universal power supply , ying sa fbt OK po sakin

sherlanmamaril
C Battery
C Battery

Posts : 242
Join date : 2015-07-14
Age : 20
Location : baguio city

Back to top Go down

Re: Troubleshooting Guidelines

Post by Hertz on Sun Jul 17, 2016 8:53 pm

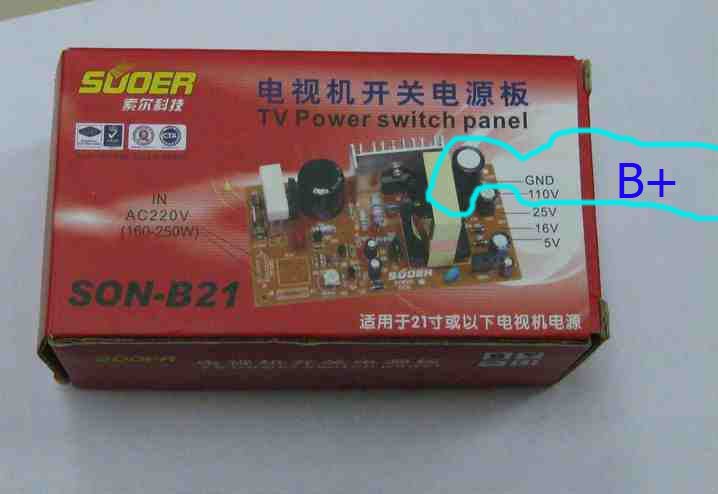

follow niyo lang ang desire voltage na kailangan ng orihinal na supply ng tv. halimbawa sa B+.



dapat iyong B+ supply ng Universal ang ikabit mo sa B+ ng TV. adjust na lang sa trimmer kung kinukulang. iyong mga low voltage supply gaya ng 25V, 16V at 5V naman ang gamitin sa mga low voltage ng kailangan ng TV. Hindi naman necessary gamitin lahat. piliin niyo lang ang kailangan talaga ng TV

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1458
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down
