Programmer ng 93series eeprom.

View previous topic View next topic Go down

Programmer ng 93series eeprom.

Post by james on Tue Aug 19, 2014 7:04 pm

Meron kaya diy neto mga sir? Kaya lang usb na interface. Wala na kasi mga serial at parallel ngayon mga computer.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by Hertz on Thu Sep 04, 2014 7:07 pm

wait na lang saglit. hanapin ko lang ang akin

_________________
3rd member of STTM
former 4th member

Hertz
Admin
Admin

Posts : 1475
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Fri Sep 05, 2014 11:28 am

Samalat master.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Mon Sep 08, 2014 7:00 pm

Up ko lang..

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Thu Sep 18, 2014 1:30 pm

Up ko uli busy yata si master herts

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by ultrasonic™ on Tue Oct 21, 2014 1:34 pm

Sis JS.. dba may Pickit2 clone ka? pwde yan sa 93cseries

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Wed Oct 22, 2014 8:35 pm

Sino si JS sir admin? Pwede ba ang pickit2 sa 93series, paano sir gawin.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by ultrasonic™ on Wed Oct 29, 2014 12:30 pm

waa.. ayw mo tlgang umamin  ^_^

xa nga pala sis js.. im not really sure kng eto ba ang interfacing. limot ko na kasi...

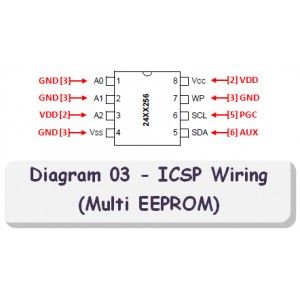

ICSP Wiring (Multi EEPROM)

These diagrams show how to program the Microchip 11LCXX, 24LCXX, 25LCXX, 93LCXX and HCSXX series with ICSP (In-Circuit Serial Programming) method.


These diagrams show how to use iCP02 to program a PIC chip with ICSP (In-Circuit Serial Programming) method.



VDD Setting (5V or 3.3V):

  • 5V: for EEPROM operating voltage up to 5.0V

  • 3.3V: for EEPROM operating voltage up to 3.3V





11LCXXX Series:

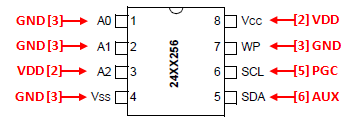

24LCXX Series:




Note: Set [A2 Chip Select] at PICKit2 software

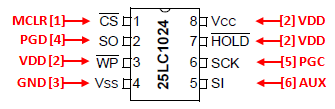

25LCXX Series:






93LCXX[A/B/C] Series:





Note (ORG pin): Vdd = (x16) organization; GND = (x8) organization

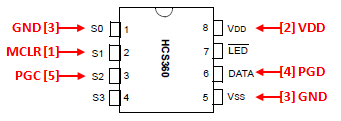

HCSXX Series:




_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Wed Oct 29, 2014 8:44 pm

Paano naman sir sa software side ano gagawin?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by ultrasonic™ on Mon Nov 03, 2014 6:33 pm

hanapin ko muna ang pickit2 clone ko sis matutorial natin

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by alvinquimbo on Wed Nov 05, 2014 11:37 pm

abang mode muna..usaping programming ito..

alvinquimbo
D Battery
D Battery

Posts : 729
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by volter on Mon Feb 23, 2015 2:33 pm

support nga yan sa pickit2

_________________
4th member of STTM
former 5th member

volter
Admin
Admin

Posts : 174
Join date : 2010-08-24
Age : 40

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by daltanics on Mon Feb 23, 2015 10:10 pm

mga master subukan nyo ito gamit ko since 2006,dual yan 93cxx and 24cxx,kaya lang sa serial ang port nya, using pony prog.

daltanics
AA Battery
AA Battery

Posts : 118
Join date : 2011-10-30
Age : 36
Location : davao city

Back to top Go down

Re: Programmer ng 93series eeprom.

Post by james on Mon Feb 23, 2015 10:57 pm

Subukan ko na lang sa mga lumang pc sir. Sir daltanixs paano yan gawin?

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down
