TCL TV ( Chassis NX56E-LA (MA1) ) E.Board 40-00NX56-MAE1XG

Post by ultrasonicâ„¢ on Mon Aug 18, 2014 7:15 pm


TCL 21F1


Chassis NX56E-LA
E.Board: 40-00NX56-MAE1XG





Partlist:

Power Reg.: K2996
Pwm: NCP1337
EEPROM : 24C16
UOC: TDA11145PS-N3-3
Vertical : STV8172A
Sound : TDA7266SA
RGB: BF422, BF423
AV sw. : 74HC4053
HOT: D1556, D5023

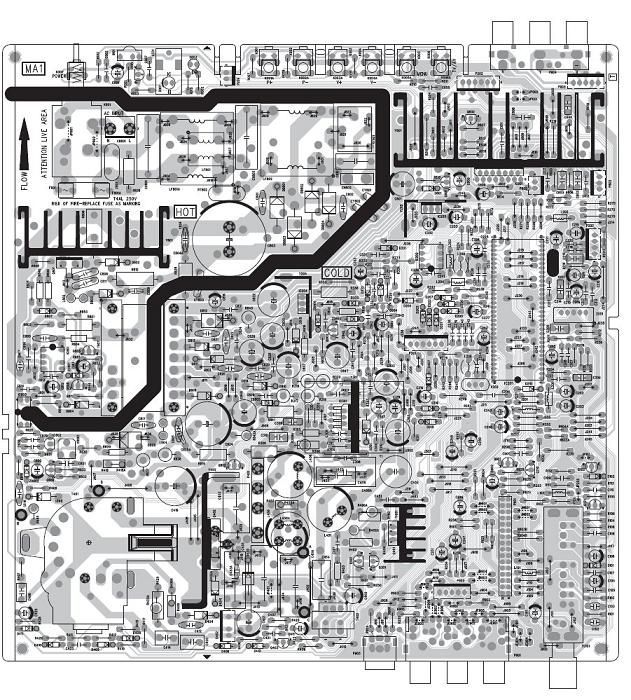

TCL Chassis NX56E-LA ( MA1 )
