water level sensor

Post by juskoro on Sun Jul 06, 2014 11:29 pm

Mga master may idia ba kayo paano magawa ng water level sensor na ang gamit ay relay na kon mapuno ang tangke ng tubig mag alarm ang basser pag empty naman mag alarm din.

juskoro
AAA Battery
AAA Battery

Posts : 9
Join date : 2011-11-21
Age : 43
Location : present place Riyadh KSA

Back to top Go down

Re: water level sensor

Post by alvinquimbo on Sat Jul 12, 2014 11:05 am

@sis juskoro may makukuha nyan sa net..search mo lang if may time ako gawan kita kaso lang ngayon ay nasa planta ako at limited ang gamit ko sa net...wait ka lang mamaya at ipopost ko ito.. Very Happy

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: water level sensor

Post by Electro on Wed Jul 16, 2014 4:00 pm

baka pwede nag gumawa ng float switch

Electro
D Battery
D Battery

Posts : 1431
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: water level sensor

Post by DJFEL on Wed Oct 29, 2014 2:47 pm

float switch nlng sis madale pa gawen at hinde pa mka distorbo..

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: water level sensor

Post by alvinquimbo on Wed Oct 29, 2014 7:35 pm

pwede rin float switch yung omron ang brand..electronic type yun sis..

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: water level sensor

Post by juskoro on Wed Oct 29, 2014 8:17 pm

Ok sis salamat subokan ko, may tanong ako sis pagdalawa ang tank ng tubig may sa rooftop at sa baba na tanke kong baga ma empty ang tank sa baba Hindi mag on ang motor pag fall ang tubig sa taas na tank off ang motor series connection ang gawin ko.kong may diagram ka sis pa share naman.

juskoro
AAA Battery
AAA Battery

Posts : 9
Join date : 2011-11-21
Age : 43
Location : present place Riyadh KSA

Back to top Go down

Re: water level sensor

Post by ultrasonic™ on Mon Nov 03, 2014 6:13 pm

eto sis.. baka ko mkatulong sau.. isa sa set-up ko sa kabilang bahay  ^_^

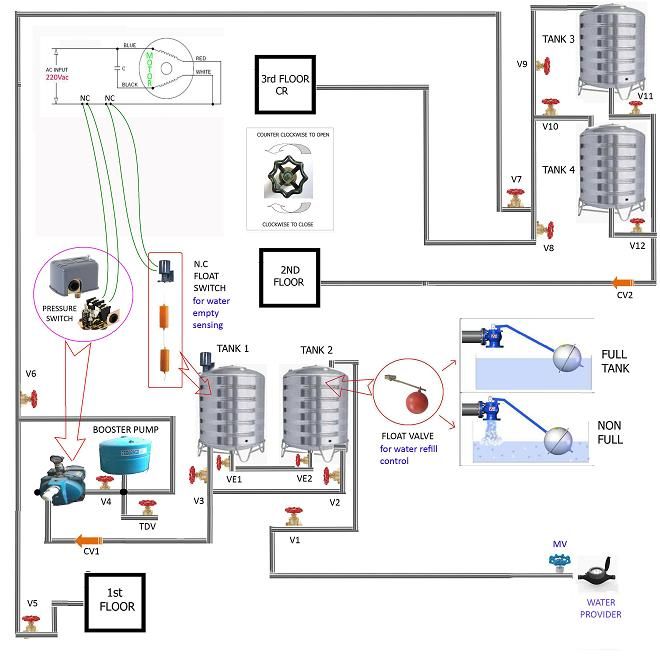

MV - Main Valve of Water Provider
CVx - Check Valve (feedback blocker)
VEx - Valve for Equalizing
TDA1 - Tank Draining Valve
V1 - Main Gate Valve (input)
V2 - Gate Valve for tank 2 (output)
V3 - Gate Valve for tank 1 (output)
V4 - Gate Valve for both Tank 1 & 2 (output)
V5 - Gate Valve for 1st Floor
V6 - Gate Valve for upstair distribution
V7 - Main Gate Valve for the 3rd floor (input source)
V8 - Gate Valve for 3rd Floor
V9 - Gate Valve for tank 3 (input)
V10 - Gate Valve for tank 4 (input)
V11 - Gate Valve for tank 3 (output)
V12 - Gate Valve for tank 4 (output)

Zoom

WATER LINE SYSTEM PDF

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: water level sensor

Post by alvinquimbo on Wed Nov 05, 2014 11:35 pm

grabe nito sir ultra ha...mhal lang jan yung centrifugal pump yan...
@sis juskoro: may schem diag ka na pwede mo na yan sundan...^_^

alvinquimbo
D Battery
D Battery

Posts : 723
Join date : 2014-03-29
Age : 28
Location : Davao City

Back to top Go down

Re: water level sensor

Post by Electro on Fri Nov 07, 2014 11:38 am

master ultra, para saan po pala ang ganyan?

Electro
D Battery
D Battery

Posts : 1431
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: water level sensor

Post by ultrasonic™ on Sat Nov 08, 2014 10:05 am

kunwari ka pa jeff na di mo alam ^_^
Naglalagay ng ganyan para madagdagan ng pressure ang tubig.. nang mapaakyat ang tubig sa mas higher Height

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4110
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: water level sensor

Post by Electro on Mon Nov 10, 2014 10:10 am

ganun ba master. kaya pala marami akong nakikitang ganyan sa mga building

Electro
D Battery
D Battery

Posts : 1431
Join date : 2010-08-26
Age : 27
Location : Calinan Davao City

Back to top Go down

Re: water level sensor

Post by DJFEL on Mon Nov 10, 2014 8:49 pm

tnks neto sis..mang ka eba rin yong set up ko neto...

DJFEL
D Battery
D Battery

Posts : 1722
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: water level sensor
