Sharp TV ( Chassis GA-4 1W ) E.board DUNTKC522WE

Post by ultrasonic™ on Thu May 29, 2014 7:34 pm

Sharp TV

Chassis GA-4 1W
E.board: DUNTKC522WE

Reg: STRW6753 , STEW6754
System: M61251CF
Jungle: IXA983WJ
Sound: AN17820B
RGB: C3789
Vet: STV9302A, AN15525A
Hot: TT2140
FBT: FA113WJ , JF0-501-32601

Tuner: VTUVT1Y5UF201,VTUVT1T5UF202

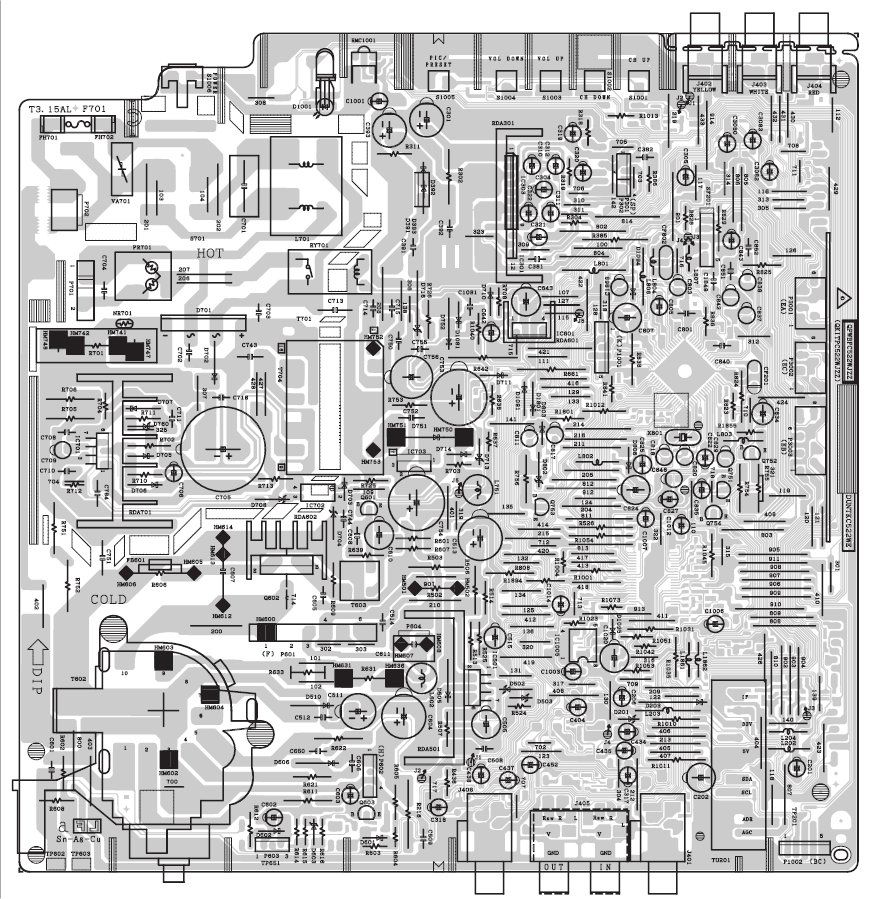

image courtesy of Rober M Baluyot

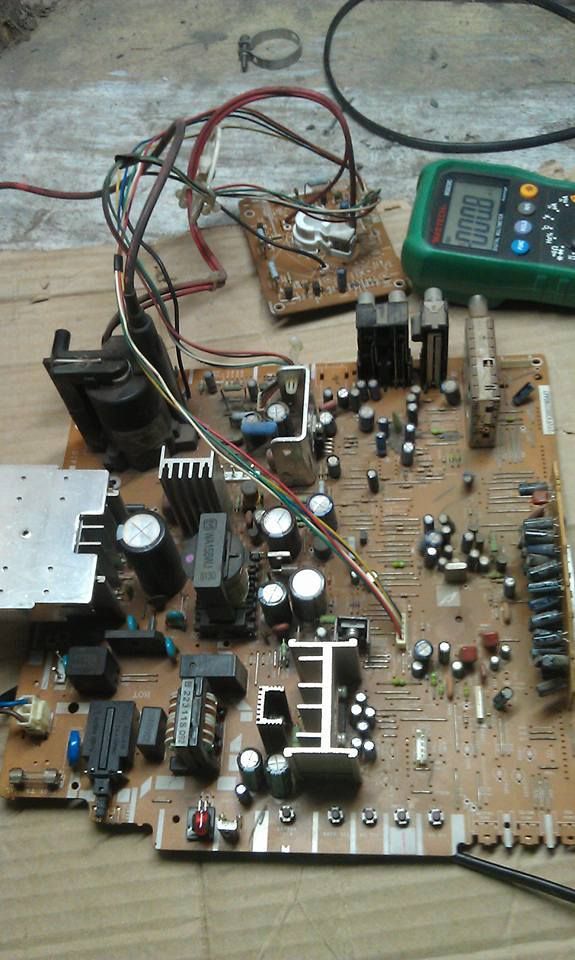

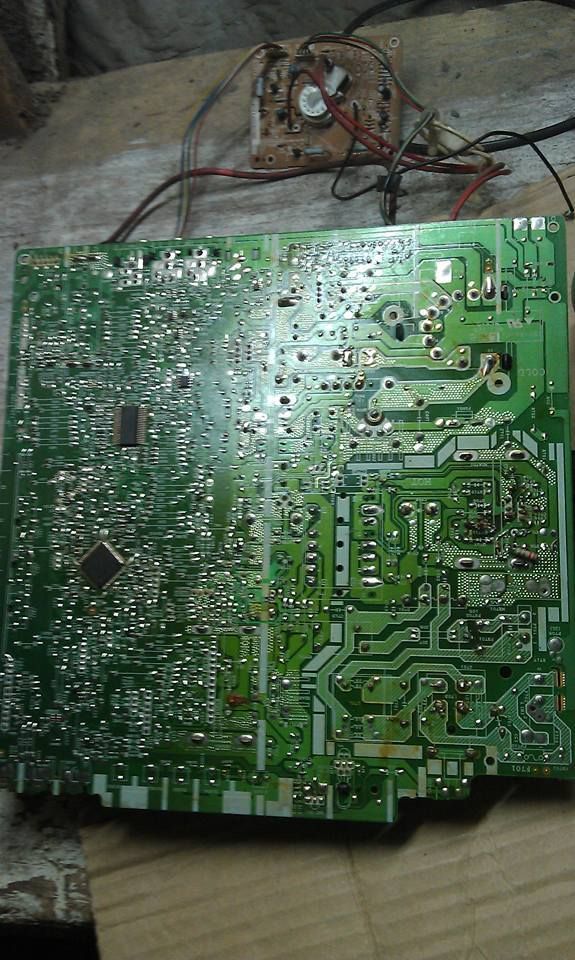

Sharp TV ( Chassis GA-4 1W)
