Panasonic TV ( Chassis MX5 ) E.board TNP4G066

Post by ultrasonicâ„¢ on Sat May 24, 2014 6:49 pm

Panasonic TV


Chassis MX-5
Eboad: TNP4G066

Q Reg: C5241
System: MN1871681TFH, NM1871681TA
EEPROM: - 24C02 / 24C04
Jungle: M52770SP, M52770ASP700
Secam: AN5637
Vert: LA7840
HOT: 2SD2499 /2SD1555
RGB: 2SC2258
SAW: K6267
Sound: LA4289N
Band: AN5071
Tuner: ENV59D22F1
Tube: A51JXS064X

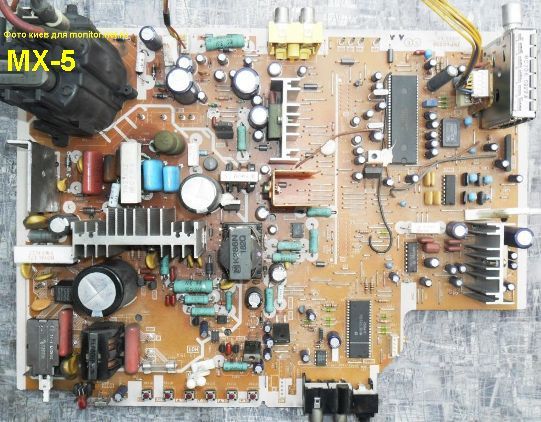

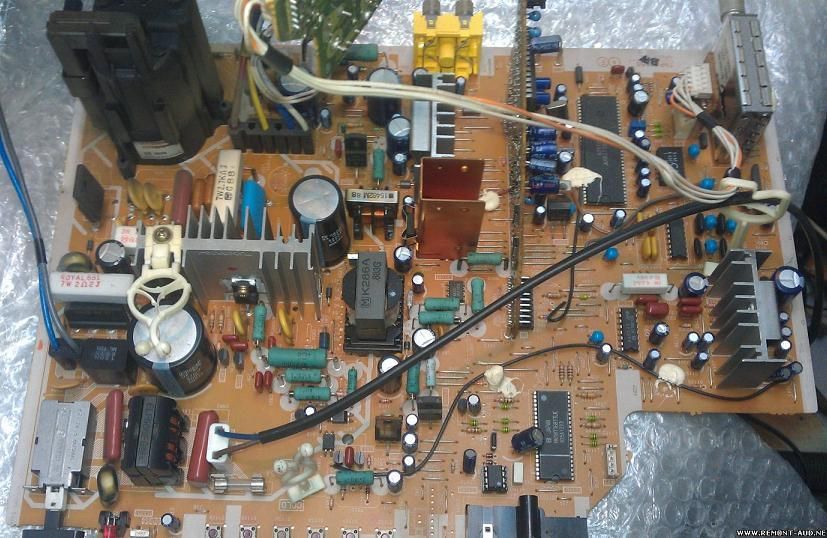

Panasonic TV Chassis MX5
