LG ultra Slim ( Chassis CW81A )

Post by ultrasonicâ„¢ on Wed May 14, 2014 4:38 pm


LG TV

21FS4RL
LG-21FU1LR






Chassis CW81A

Main Parts


Power Reg.: STR W6553A (mono) STR W6554A (stereo)
EEPROM : 24C04/24C16
UOC. : LV76223
Vertical : LA78141
Sound : LA42101
RGB amp: 2SC2330
HOT: 2SC6090 / 2SC6093

FBT : EBJ34806703 BSC25-N0329 / EBJ41700601 JF0501-19989 / EBJ34806701 / 6174V-6006V, BSC25-N1651, BSC25-N0363
Tuner : 6700MF0018E TAEA-G111D





Some images courtesy of Sis PT ng elab

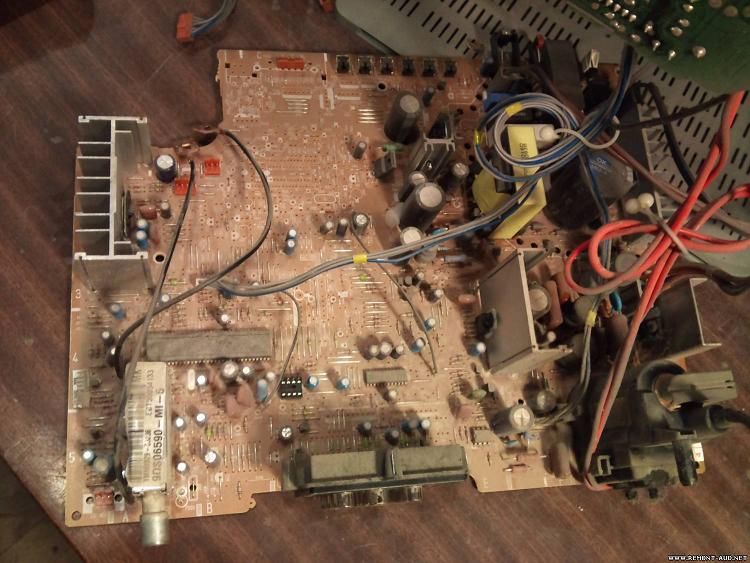

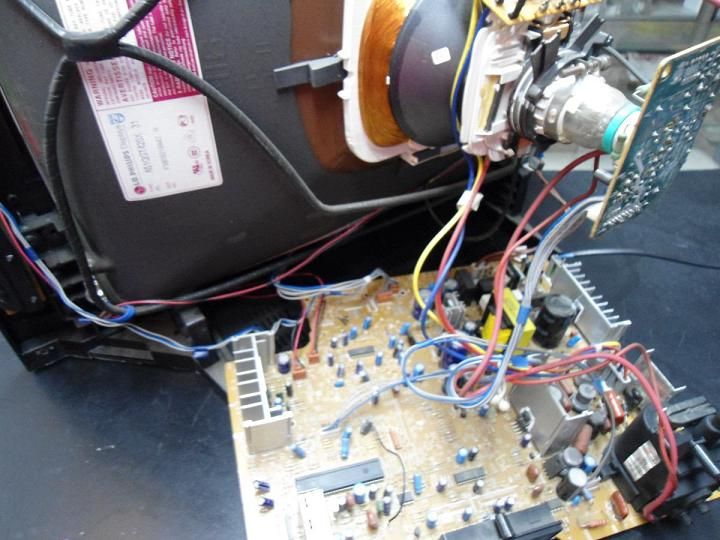

LG TV Chassis CW81A
passcode: my sttm id
