Sharp TV ( Chassis SN-70B ) E.Board DUNTK9731WEV5 /6

Post by Hertz on Sat Apr 12, 2014 2:57 pm



sharp tv

20lk31
20lk61

DUNTK9731WEV5
DUNTK9731WEV6


chassis SN-70A



Q Reg: D1884
PWM: IX1779CE
eeprom: M24C01B
System: IX2946CE
Jungle: IX2933CE / IX2701CEN1
Sound: TDA7056A
RGB: C22290
Vertical: TA8403K
HOT: D2586
FBT: F0147PE

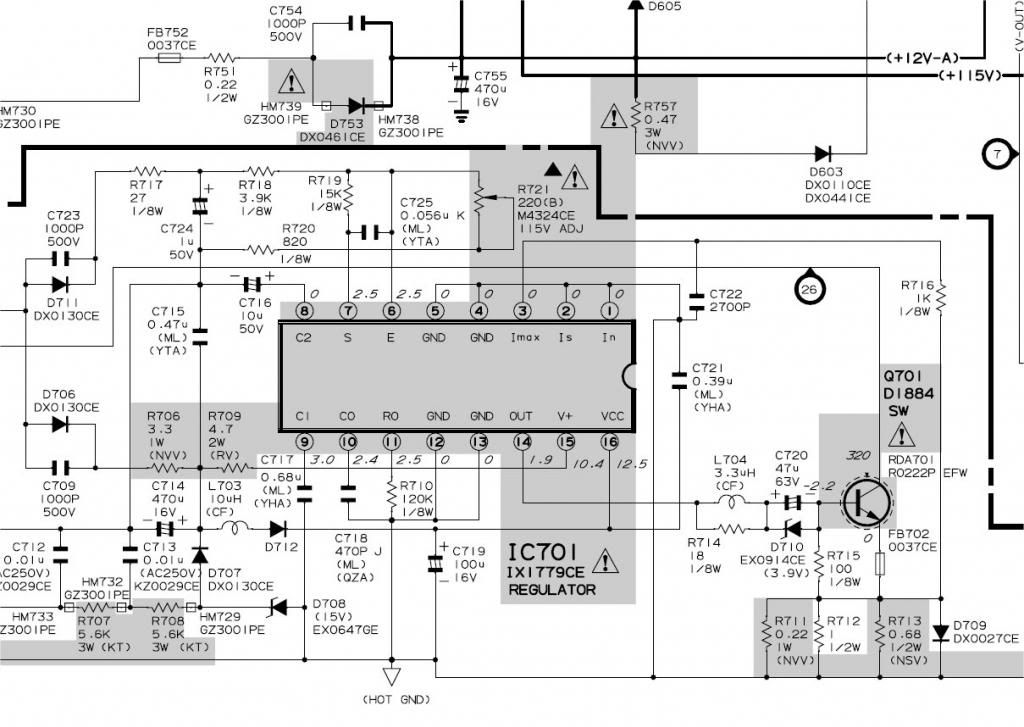

Sharp Chassis SN-70B (E.Board DUNTK9731WEV5/6)
