Samsung TV ( Chassis KS3A )

Post by Hertz on Wed Mar 12, 2014 6:40 pm

SAMSUNG
SC-25M6HNQ


CHASSIS KS3A





SMPS - 3S1265R, KA3S1265A, KA3S1265R
Micom - (SIM-812MA4), SDA555X (SIM-806HMA6 02), SDA9401
Memory - A51DC , 24C08, 24WC16
Video - VDP3130Y B2,VPC3230D B3
Vertical - LA7845
Sound - TDA7297
Stereo - MSP3400G-B8 V3
Tuner - TCLS3101PD6A(N), TSLS3101PD16A
Tube - A68QCP693X500
FBT - FUH-29C001(S) (HR8852), FUJ-34B001 (13727021A - HR8735)
HOT - 2SD5703/FMP-3FU, 2SC5446
RGB Amp. - TDA6101Q, TDA6111Q
MSP 3411G2-A2
Other ICs - TEA6425, KA393

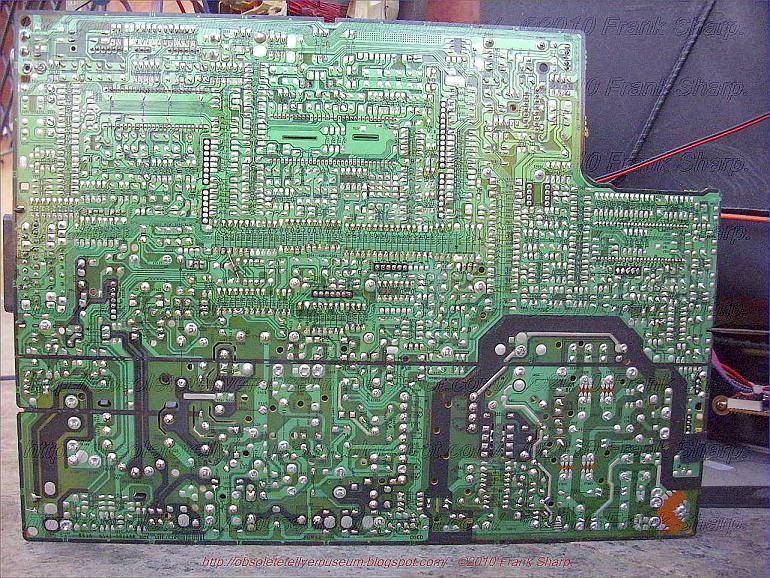

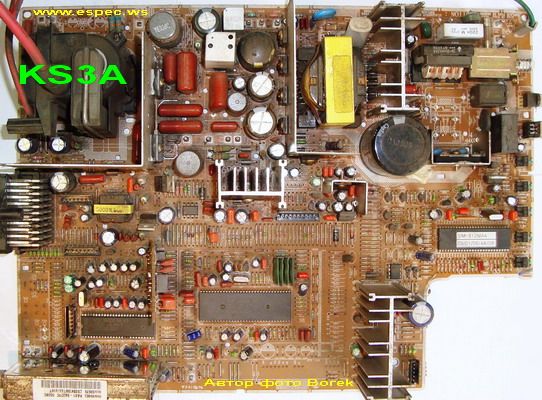

Samsung Chassis KS3A
