TOSHIBA TV ( Chassis TAC9814 ) CN27H95
by ultrasonic™ on Wed Feb 19, 2014 6:55 pm
Toshiba
CN27H95
Chassis TAC9814
Reg: STRZ4214
EEPROM: AT24C04
System con: M37274MA-060
Jungle: TA1291N
Comb Filter: TC90A45P
IF/MTS/A.Pro: MVUS33A
PIP Controller: TC9083F, TA1270F
Sound: TA8211AH
RGB: 2SC4544
AV SW: MM1313BD
Vert: TA8427K
Hot: 2SC2482
FBT:

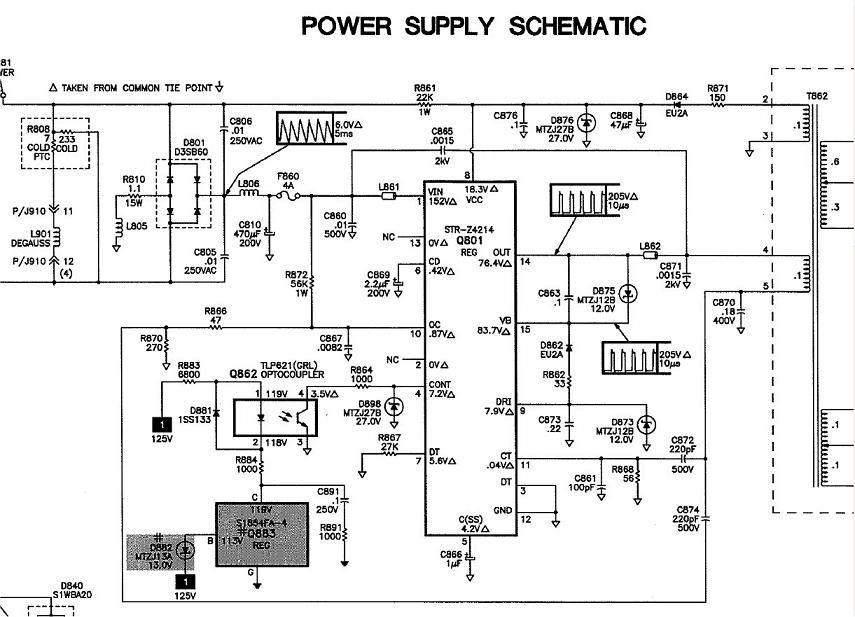

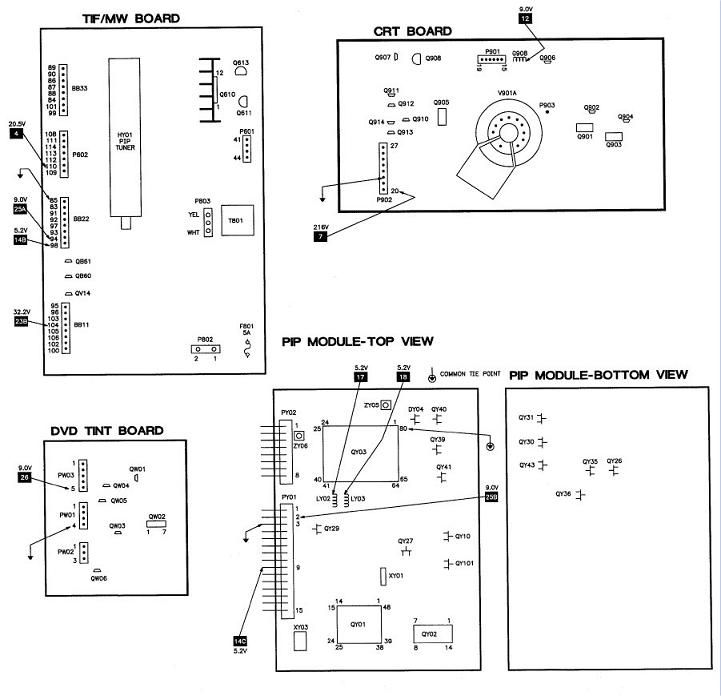

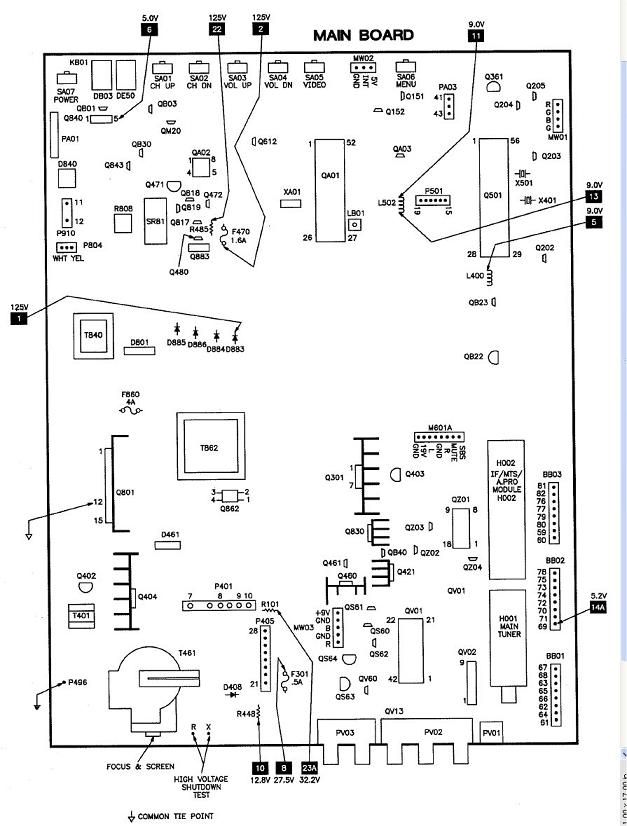

TOSHIBA Chassis TAC9814
