Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by juskoro on Wed Feb 12, 2014 2:57 am

sis itong monitor ko sa una nag click palagi ang relay pinok pok ko lumabas ang picture kina umagahan binuhay ko ulit nag click na naman ang relay nya hangang ayaw na lumabas ang picture relay always ON OFF parin.Saan kya ang problima nito.Ok naman ang cpu nya sinobukan ko sa kasama ko.
 sana matulongan nyo ako.God Bless to all sa memebers ng forum na 2.

juskoro
AAA Battery
AAA Battery

Posts : 9
Join date : 2011-11-21
Age : 43
Location : present place Riyadh KSA

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by ultrasonic™ on Wed Feb 12, 2014 12:14 pm

based xa statement mo sis.. kng crt monitor yan.. i think my loose con kau sa loob.. try mo buksan... at mg resolder sa loob... paalala lng kng di kau technician at wla kaung karanasan ay medjo risky ang pgbuksan nyan.. mas mainam ipagawa nlng sa certified tech people.... sa kdahilanang medjo complicated ang plastic case nya.. rather that sa mga CRT TV na friendly for trouble shooting.....  pero kng mapilit kau at my lakas ng loob ay Go  ^_^

buksan mo lng ang unit
sa pag bukas mo nyan ay expect ka na na ganito ang hitsura nyan..


medjo magulo  ^_^

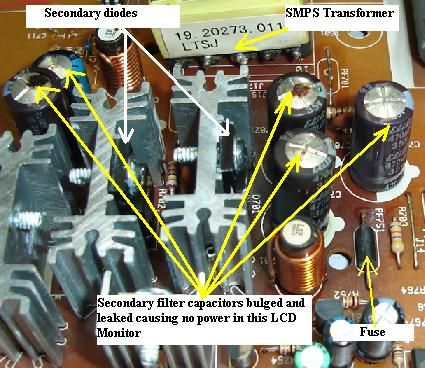

pero ang important target mo lng nmn ay do the basic...mghanap muna ng mga bulky ecaps like ganito...



pg my ganyan ay palitan mo lng ng same value at exact polarity
pg wla nmn mahanap ay hanap ka na ngayon ng loos con...
ihiga mo ang crt monitor na nkaharap ang faceplate ng picstube sa flatform like this one





at tignan ang main board kng my mga crack solder, loose, dry joint o burn part...












then resolder mo ang mga iyan.. naway mkatulong


images courtesy of sis hertz at ibang sites  ^_^

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by Ahmadiloz on Thu Feb 13, 2014 1:01 am

resolder lng yan master..
sundan lng si sir ultra
.

Ahmadiloz
C Battery
C Battery

Posts : 169
Join date : 2013-07-25
Age : 24
Location : cebu

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by juskoro on Fri Feb 14, 2014 10:08 pm

mga master na resolder kna lahat nag chick ako sa AC side may 230volts ang DC walang supply nag hang ako ng isang paa sa regulator transestor sa drain side nawala na ang treger ng relay chick ko ng manual ang transestor N-mosfet to P-test probe sa drain N-test sa source 6 ohms revers probe no riading N-test probe gate P-test probe drain no riading pag N-drain P-source riading up to 100 ohms slowly the nidle going to zero, x10 seating ng tester ko.nomber ng transestor 2sk2761 maring sira kaya.

juskoro
AAA Battery
AAA Battery

Posts : 9
Join date : 2011-11-21
Age : 43
Location : present place Riyadh KSA

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by ultrasonic™ on Mon Feb 17, 2014 12:09 pm

ganito ako mgtest ng mosfet sis


2 Methods For Testing MOSFETS

Method 1:

First look up the part number for the MOSFET you want to test online and acquire the datasheet. Once you have the datasheet or have somehow gotten the specifications for the MOSFET you are testing and you know the pin configuration, set your analogue meter to the x10k range to check the MOSFET. Let’s say you are testing an N channel MOSFET, put the black test lead on the drain pin then touch the gate pin with the red test lead. This will discharge the MOSFETs internal capacitance. Next place the red test lead to the source pin while still holding the black test lead to the drain pin.

Now take a finger, while still holding the test leads in place, red on source and black on drain and use that finger to touch the gate and drain pin at the same time, the analogue meters needle should move from infinity to around the center position of the meters indicator. Taking the red test lead off the source pin and placing it back on the source pin the needle should still go back to the middle of the meters indicator. To discharge the MOSFET lift the red test lead from the source pin and touch it to the gate pin, this will discharge the internal capacitance again and if you again place the red test lead on the source pin and the black test lead to the drain pin, the needle on the indicator should not move and give an infinite ohms reading. Testing a P channel MOSFET is the same as for an N channel MOSFET only you will reverse the polarity of the test leads for each test.









Method 2:
Using an ohmmeter set to the x 100 ohm scale, measure the resistance between the drain and the source, then reverse the leads and take another reading between the drain and the source. Both readings should show infinity, regardless of meter lead polarity. Connect the positive lead of the ohmmeter to the gate. Using the negative lead, measure the resistance between the gate and the drain and then between the gate and the source. Both readings should indicate infinity. Disconnect the positive lead from the gate and connect the negative lead to the gate. Using the positive lead, measure the resistance between the gate and the drain and then between the gate and the source. Both readings should indicate infinity. If the MOSFET has a substrate connection, disconnect the negative lead from the gate and connect it to the substrate.
Using the positive lead, measure the resistance between the substrate and the drain and between the substrate and the source. Both of these readings should indicate infinity. Disconnect the negative lead from the substrate and connect the positive lead to the substrate. Using the negative lead, measure the resistance between the substrate and the drain and between the substrate and the source. Both readings should indicate a low resistance (about 1,000 ohms). Most MOSFETs will fail by shorting from drain to source and sometimes they will also have a short between gate and source, between gate and drain or both.
Remember you should always try and find a data sheet for the MOSFET you are testing because you will find some MOSFETs will have different characteristics that will make the test readings slightly different. For instance the FQPF9N50CF has a body diode between source and drain, so that when testing you will get a reading in one direction between source and drain in x100 ohm setting and this is normal.
Always try to use exact replacements when replacing a bad MOSFET. If you must use a substitute always replace with the same type(N channel, P channel, enhancement mode etc…) and also replace with the same or higher BVDSS (drain to source breakdown voltage) and the same or higher ID(continuous drain current). Also if you substitute a MOSFET used in a half bridge that uses two identical MOSFETs replace both the MOSFETs in the half bridge so that both of the MOSFETs are the same, don’t just replace the bad one in this case.

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by DJFEL on Fri Mar 07, 2014 7:26 am

sapol na yata to..

DJFEL
D Battery
D Battery

Posts : 1746
Join date : 2012-11-21
Age : 34
Location : SIUIJOR

Back to top Go down

Re: Acer monitor AF705 problem relay always treger on and off during switch on power and no picture

Post by juskoro on Sun Mar 16, 2014 3:16 am

DJFEL wrote:sapol na yata to..
wala na ayo brod mora mag nagka classmate ta sauna sa cvpc atong maistro second year si enrique diaz pag thierd year si mr.eloreg atong classmate si jaime sol si carlo lajer,si dioscoro ko silingan ko ni arjay jo sa siaton.
