China Board ( Chassis M35-M36) K3298, MC44608, VTC3831A, TDA7057AQ, TDA8172

Post by ultrasonic™ on Wed Jan 29, 2014 6:33 pm


Schneider
China TV


Chassis M35-M36

Eboard:
01-02135K-MA1
01-000M36-MA1






Partlist:


Reg: 2SK3298
PWM: MC44608
EEPROM: 24C04
UOC: VTC3831A
Sound Procie: MSP3415G/MSP346C
IF ic: M52760SP
RGB:  BF423
Sound: TDA7057AQ
AV SW: 4052
Vert: TDA8172
HOT: BU4508
FBT:
Tuner: TELE4801

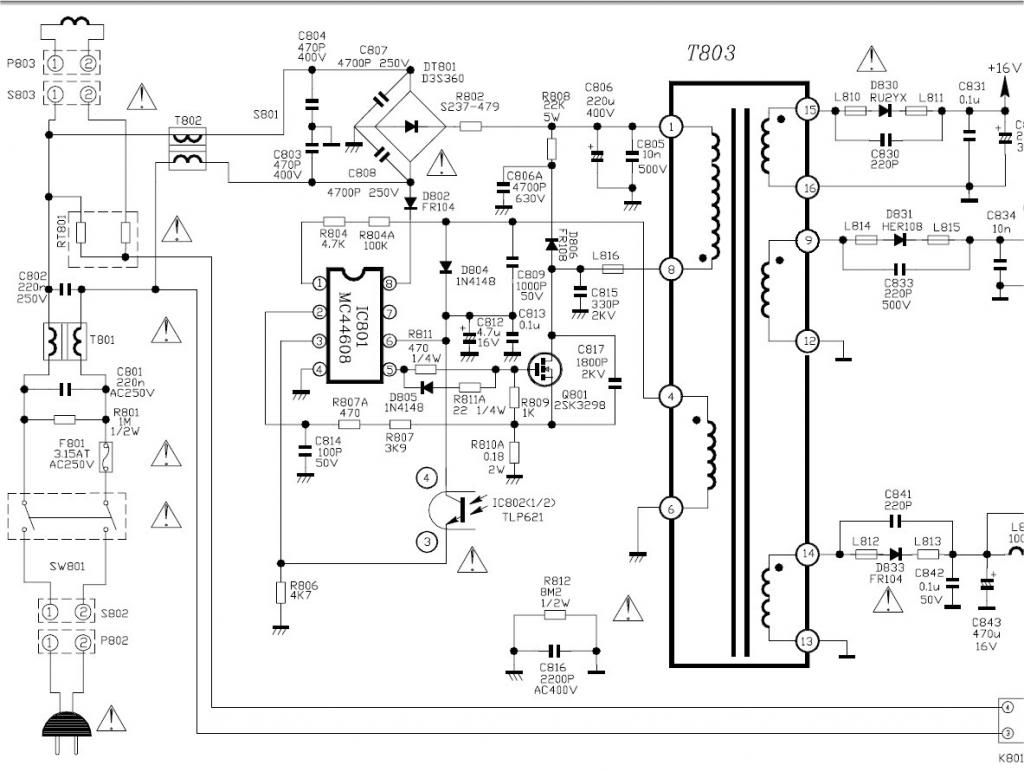

China BOard Chassis M35-M36

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4297
Join date : 2010-08-19
Age : 31
Location : Davao City

Back to top Go down

Re: China Board ( Chassis M35-M36) K3298, MC44608, VTC3831A, TDA7057AQ, TDA8172

Post by DJFEL on Wed Dec 16, 2015 8:14 pm

wla na yata to..
