Samsung TV ( Chassis KSCA )

Post by ultrasonic™ on Fri Jan 24, 2014 12:26 pm


Samsung

CS-21Z47Z3Q


Chassis KSCA










Reg: 5Q12656 / 5Q0765RT
EEPROM: ST24C16W
UOC: TDA12120H/N300 or TDA12176 N3/2
SAW: MIF389A & AF389A19M
AV Sw: 74HC4052
Vert: LA78141 / LA78145
Sound: LA42102
RGB Amp.: TDA6107AJF/N1
Tuner: TDQ-6L/125S AA40-10007A
HOT: T2222 / FQP630TSTU
FBT:  BSC25-5207 / BSC25-0217G / F0K14B001

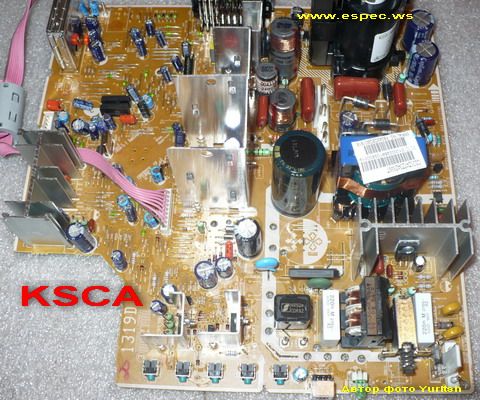

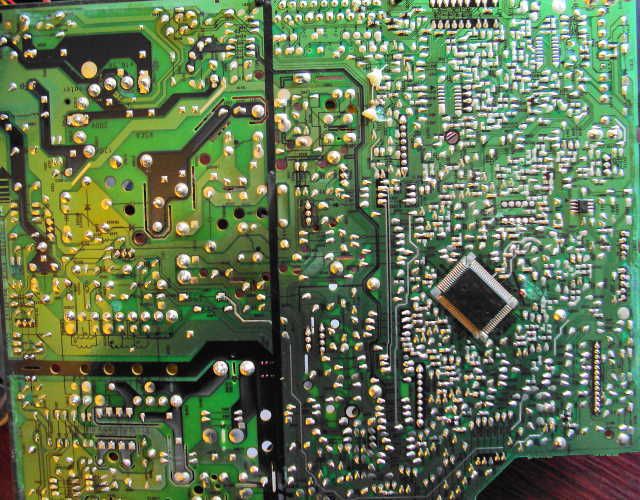

Samsung Chassis KSCA
