SONY TV ( Chassis BA-3 ) E.board: 1-659-850-11

Post by ultrasonicâ„¢ on Fri Jan 03, 2014 7:29 pm

SONY
Model Series


KV-20M20
KV-20S20
KV-20S21
KV-20S30
KV-21R20
KV-21RD1
KV-21PM1
KV-21SD1
KV-21PS1



Chassis BA-3
E.board: 1-659-850-11




Q.Reg: C5271
System: M37267M6-059SP
EEPROM: 24C01
jungle: CXA1870S
RGB: C4722
Vert: LA7830
HOT: D1877
FBT: 8-598-961-00
Sound Amp: TDA2009A

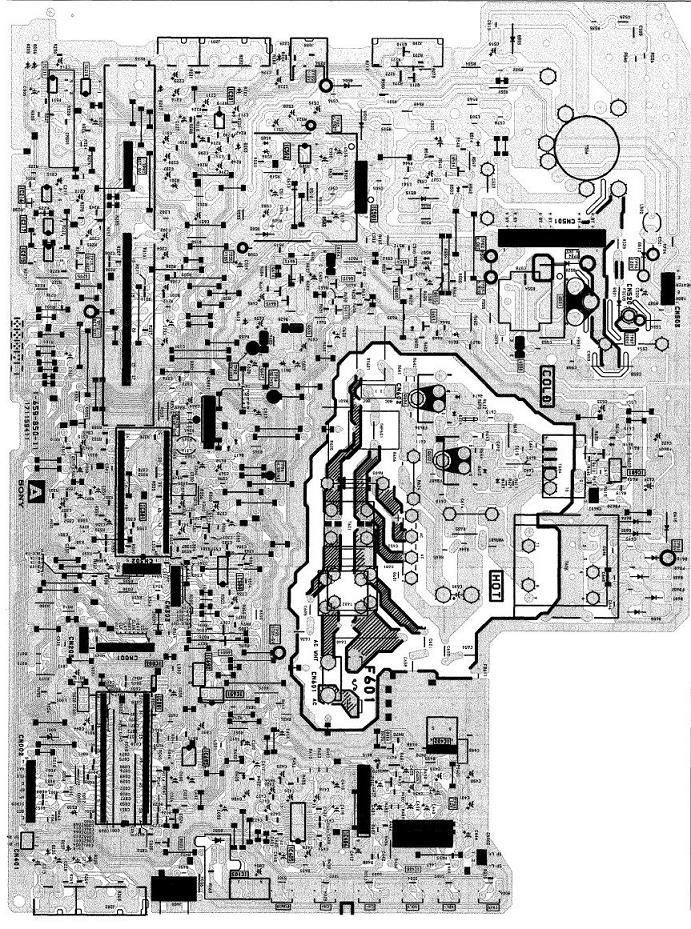

SONY Chassis BA-3

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonicâ„¢
D Battery
D Battery

Posts : 4158
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: SONY TV ( Chassis BA-3 ) E.board: 1-659-850-11

Post by DJFEL on Thu May 29, 2014 9:33 am

pa share neto sis if mang ka pareho bato...
