Help! Sanyo 21 no raster but audio ok

Post by Lenaren on Mon Dec 16, 2013 5:36 pm

Patulong master walang raster pero ok ung audio.... nagpalit na me capacitor sa vertical at bago na rin ang vertical ic... pag taasan ko g2 horizontal line lng.. medyo garalgal din tunog ng audio nya...

thanks
avatar
Lenaren
C Battery
C Battery

Posts : 286
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Hertz on Mon Dec 16, 2013 6:02 pm


model pls

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1491
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Lenaren on Mon Dec 16, 2013 6:40 pm

sanyo avm 21v m8 master.....
avatar
Lenaren
C Battery
C Battery

Posts : 286
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by ultrasonic™ on Tue Dec 17, 2013 12:20 pm

unahin mo muna ang H.line nya sis.. check mo ang mga supply ng vertical ic... pg kumpleto sunod mo nmn ang yoke.. change na rin ng secondary filter caps baka palyado kaya my effect sa audio...

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4283
Join date : 2010-08-19
Age : 31
Location : Davao City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by ultrasonic™ on Tue Dec 17, 2013 12:29 pm

try mo tong manual na to sis... bka makatulong sa pag titrace
Chassis M17

pa cnfirm na rin kng tama

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4283
Join date : 2010-08-19
Age : 31
Location : Davao City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Lenaren on Tue Dec 17, 2013 8:30 pm

thanks sis... 1+ din sa iyo... pag-aralan ko muna mapa nito...
avatar
Lenaren
C Battery
C Battery

Posts : 286
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by DJFEL on Wed Dec 18, 2013 7:25 pm

hmm...ano apdit na neto..
avatar
DJFEL
D Battery
D Battery

Posts : 1761
Join date : 2012-11-21
Age : 35
Location : SIUIJOR

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Lenaren on Fri Dec 20, 2013 4:25 pm

....eto po some reading...

b+ - 110V
Vert IC input pin - 24V
Yoke - 24V, 24V

..na-observe ko master, pag pinatay ko ung unit may maliwanag na horizontal line na nalabas sa screen...

..posible din po ba na FBT na to?... halos nabalutan na kasi ng electrical tape ung FBT nya..

avatar
Lenaren
C Battery
C Battery

Posts : 286
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Hertz on Sat Dec 21, 2013 12:55 pm

may leak ang flyback. palitan mo na lang para makasiguro ka

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1491
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by DJFEL on Sat Dec 21, 2013 9:07 pm

normal ba b+ neto 110 lang yata..
avatar
DJFEL
D Battery
D Battery

Posts : 1761
Join date : 2012-11-21
Age : 35
Location : SIUIJOR

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by kaholito on Thu Dec 26, 2013 9:44 pm

ano po kaya ang dapat na output voltage dapat nito?
avatar
kaholito
C Battery
C Battery

Posts : 162
Join date : 2011-10-11

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Hertz on Sat Dec 28, 2013 3:18 pm

Lenaren wrote:....eto po some reading...

b+ - 110V
Vert IC input pin - 24V
Yoke - 24V, 24V

..na-observe ko master, pag pinatay ko ung unit may maliwanag na horizontal line na nalabas sa screen...

..posible din po ba na FBT na to?... halos nabalutan na  kasi ng electrical tape ung FBT nya..

ngayon ko lang napansin. masyadong palang mataas ang input mo [pin4].

kaholito wrote:ano po kaya ang dapat na output voltage dapat nito?

nasa 24 yan pag hindi tinanggal ang yoke

_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1491
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Lenaren on Sun Dec 29, 2013 6:29 am

ta8403 k ang vert ic nito.....

ano po input pin nito master pin4 ba o pin7?....

thanks!
avatar
Lenaren
C Battery
C Battery

Posts : 286
Join date : 2012-02-26
Location : Iloilo

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Hertz on Sun Dec 29, 2013 5:57 pm

pin4 ang input.
pin2 ang output
pin6 ang supply



_________________
3rd member of STTM
former 4th member
avatar
Hertz
Admin
Admin

Posts : 1491
Join date : 2010-08-12
Age : 36
Location : Cagayan De Oro City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by ultrasonic™ on Fri Jan 03, 2014 6:22 pm

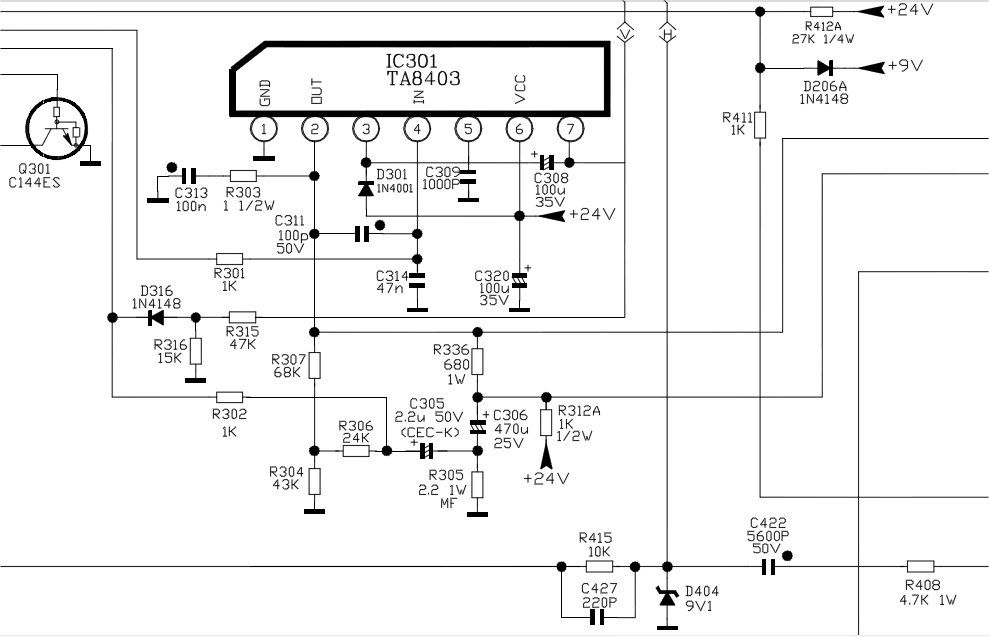

ayon my reference.. sundan mo lng ang diag ts....

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying
avatar
ultrasonic™
D Battery
D Battery

Posts : 4283
Join date : 2010-08-19
Age : 31
Location : Davao City

Back to top Go down

Re: Help! Sanyo 21 no raster but audio ok

Post by Oscar on Sat Jan 18, 2014 6:35 pm

baka may leak na ecap lang master
avatar
Oscar
C Battery
C Battery

Posts : 279
Join date : 2010-09-22

Back to top Go down
