JVC TV ( Chassis CA2 ) E.board: CKF0270-DS3-1

Post by Hertz on Thu Dec 05, 2013 11:16 am

JVC
AV-G21T

Chassis CA2





Power Reg.: STR-S6707
EEPROM : AT24C04
System Con: M37212M4-050SP, M37212M4-052SP
Jungle: M52343SP-D, M52325P, U3660 H

Vertical : LA7837
RGB AMP: 2SC4722
HOT: 2SD1878
FBT : CJ28268-00AJ1

Sound : AN5265

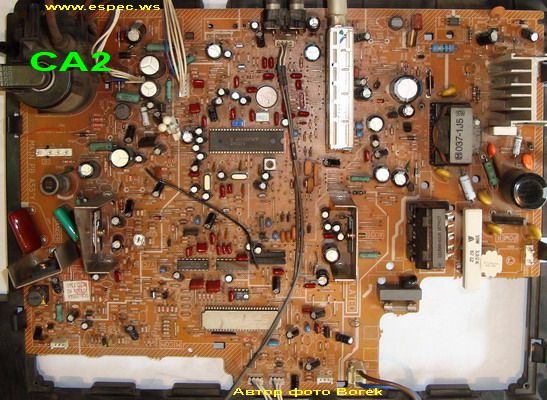

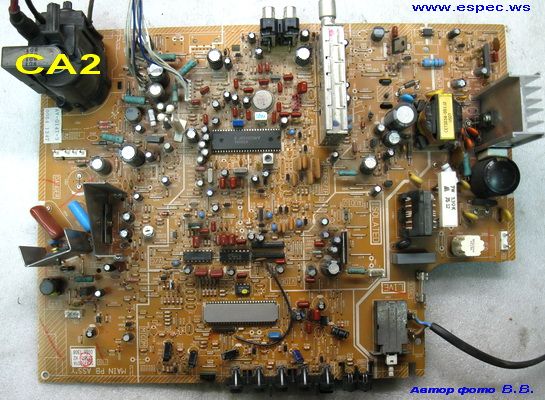

JVC Chassis CA2
