Sharp TV ( Chassis GA-8 ) E.board DUNTKE750WE

Post by ultrasonic™ on Tue Sep 03, 2013 6:44 pm

Sharp TV
Model Series:
21V-FW250S
Chassis GA-8

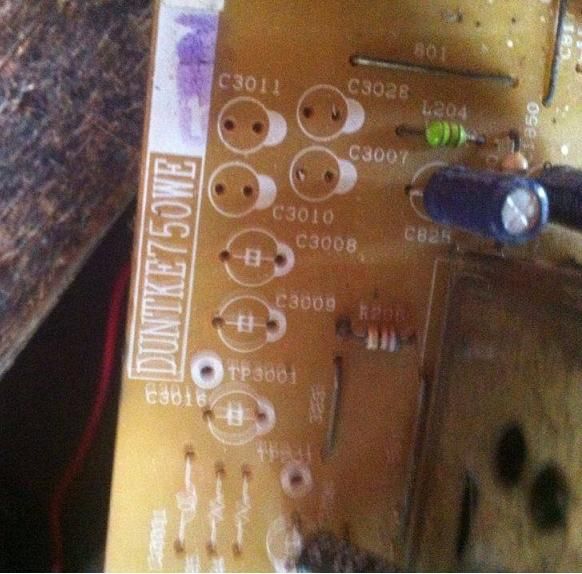

E.board: QPWBFE750WJZZ ( DUNTKE750WE )




http://i1094.photobucket.com/albums/i453/aelexianempire/TV%20chassis%20board/SharpChassGA8_zpsf42585c9.jpg

Power Reg.: STRW5453A
EEPROM : M24C08W6
UOC : IXC528WJ (R2J1017WJ)
Vertical : LA78040B
Sound : LA42031E
HOT: TT2140
FBT : FA137WJ
Tuner : QA037WJZZ

 Service mode is switched by SERVICE key, CH UP + VOL DOWN when reset.

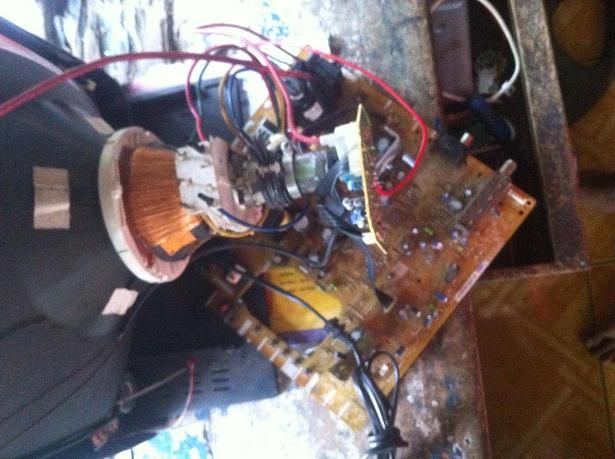

Sharp TV Chassis GA-8
passcode: my id number



Padlock password default: 2398, 2758, 0000

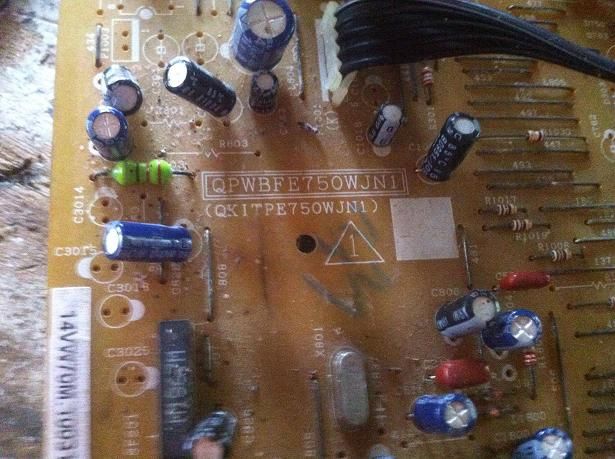

QPWBFE750WJN1
QKITPE750WJN1





images courtesy of Sis Kim Feniza Yu  Razz
