lopt question

View previous topic View next topic Go down

lopt question

Post by baddypepito on Wed Jul 24, 2013 10:35 pm

hello at good day po sa lahat... sino po ba ang nakagawa ng lopt tester.. di kc ako sure sa aking nagawa,, di kc iilaw ang 4 leds sa akin, bali ang first 4 leds lang ang iilaw kapag ok xa.. ok kaya ito? o ders samting wrong? tia

baddypepito
C Battery
C Battery

Posts : 293
Join date : 2012-08-08
Age : 29
Location : mandaue city cebu

Back to top Go down

Re: lopt question

Post by james on Wed Jul 24, 2013 10:45 pm

Kuha ka ng coil sa cfl dapat full led yan mga 4mH yan. Out of the circuit testing.


Check mo work mo sa mga loose connection. Then ganun pa rin recheck uli sa mga pyesa.

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: lopt question

Post by james on Mon Jul 29, 2013 4:26 pm

Musta na kaya ito?   sleep

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: lopt question

Post by triac on Tue Jul 30, 2013 9:47 am

@sis baddy e test mo sa HDT or sa yoke coil may ibang FBT na hindi talaga sya full pero ok naman.Ang na experience ko lang dyan na palpak ay yung hindi umilaw at umilaw lahat ng LED kahit wala di ko pa inilagay yung test probe sa FBT..

triac
D Battery
D Battery

Posts : 683
Join date : 2011-04-28

Back to top Go down

Re: lopt question

Post by ultrasonic™ on Tue Jul 30, 2013 1:13 pm

james wrote:Kuha ka ng coil sa cfl dapat full led yan mga 4mH yan. Out of the circuit testing.


Check mo work mo sa mga loose connection. Then ganun pa rin recheck uli sa mga pyesa.

agreed... lipat ko lng tong mga pic mo dito sis js  (^_^





as a reference ng iba... pahiram nlng muna ng mga pic mo..

eto ang standby status ng LOPT/FBT ringer pag di pa gnagamit.. 1 red lit wil show.



no lits naman kong pinagshort ang test probe




eto naman ang basis nyu... kong ano ang condition ng inductor coil or winding na susukatin

No Lit - Shorted windings
1-3 Lit (red LEDs)- Bad/Shorted windings
4-5 Lit (yellow LEDs)- ??? means its either bad or good
6-8 Lit (green LEDs)- Good winding

note: sa mga def yoke medjo mlilito kau needed kasi ng experience jan.. para mas makilatis nyu ang mga yan... actual test kayo sa mga good at bad na def yoke na meron kau... at try to analyze it...
specially sa iba ibang brand...

singit ko na rin tong pic ni sis deantyne

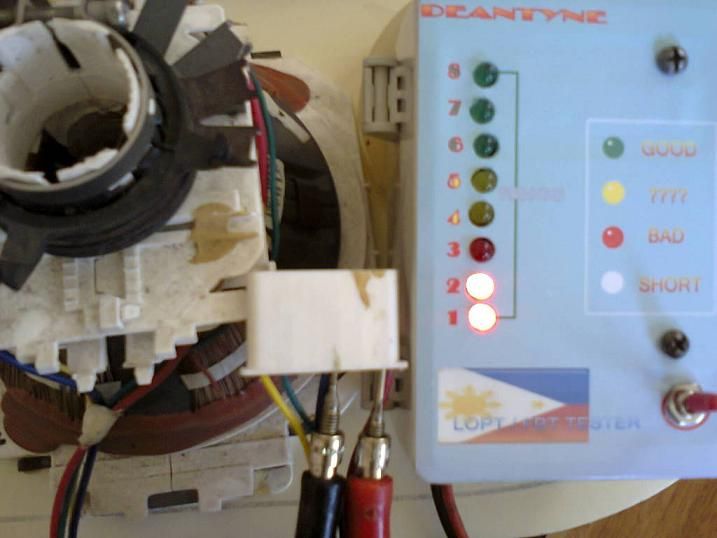

a sample pic ng defective horizontal def yoke

pampagana sa mga builders  (^_^


_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4109
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: lopt question

Post by james on Tue Jul 30, 2013 6:43 pm

Ayos, gawa mo ba yan sir? Ang ganda naman. Smile

Inggit ako. Sad

james
D Battery
D Battery

Posts : 1080
Join date : 2011-11-14

Back to top Go down

Re: lopt question

Post by ultrasonic™ on Tue Jul 30, 2013 7:40 pm

mukhang knahihiya mo ata ang gawa mo sis js ? scratch

_________________
6th member of STTM
former 2nd member


im always walking on the rain so that no one could see me crying

ultrasonic™
D Battery
D Battery

Posts : 4109
Join date : 2010-08-19
Age : 30
Location : Davao City

Back to top Go down

Re: lopt question

Post by DJFEL on Tue Jul 30, 2013 9:15 pm

ultrasonic™ wrote:
james wrote:Kuha ka ng coil sa cfl dapat full led yan mga 4mH yan. Out of the circuit testing.


Check mo work mo sa mga loose connection. Then ganun pa rin recheck uli sa mga pyesa.

agreed... lipat ko lng tong mga pic mo dito sis js  (^_^





as a reference ng iba... pahiram nlng muna ng mga pic mo..

eto ang standby status ng LOPT/FBT ringer pag di pa gnagamit.. 1 red lit wil show.



no lits naman kong pinagshort ang test probe




eto naman ang basis nyu... kong ano ang condition ng inductor coil or winding na susukatin

No Lit - Shorted windings
1-3 Lit (red LEDs)- Bad/Shorted windings
4-5 Lit (yellow LEDs)- ??? means its either bad or good
6-8 Lit (green LEDs)- Good winding

note: sa mga def yoke medjo mlilito kau needed kasi ng experience jan.. para mas makilatis nyu ang mga yan... actual test kayo sa mga good at bad na def yoke na meron kau... at try to analyze it...
specially sa iba ibang brand...

singit ko na rin tong pic ni sis deantyne
a sample pic ng defective horizontal def yoke

pampagana sa mga builders  (^_^


 eto yong gawen ko pang ka tapos yong ginawa ko na 735 amp yong programmer...
