JVC TV ( Chassis GA2 ) E.board: CKF1185-BH1-1 ( SGA-1019A-R2 )

Post by ultrasonicâ„¢ on Tue Jul 09, 2013 4:42 pm

.

JVC TV

model: AV-T2122
Chassis GA2
E.board: CLF1185-BH-1

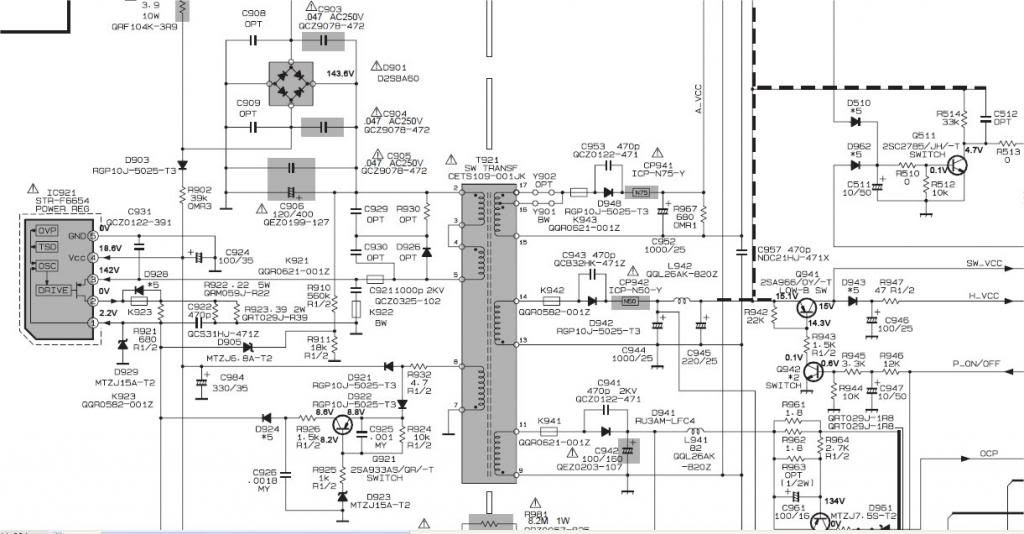

Power Reg.: STR-F6654
EEPROM : 24C02-10PC
System Con: M37272MA-320SP
Jungle: TB1230AN
MTS : UPC1851BCU
Vertical : LA7840
V SW: BA7612AN
HOT: 2SD1878
FBT : QQH0030-002
Sound : LA4485
Tuner: QAU0064-001

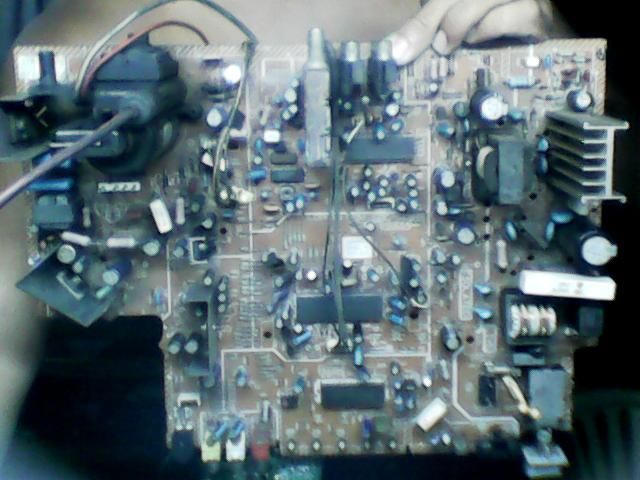

image courtesy of sis plong

JVC TV Chassis GA2
